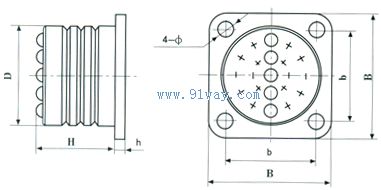

型号

D

H

h

b

容量

缓冲行程

缓冲力

重量

Model

mm

mm

mm

mm

kJ

mm

kN

kg

GJHQ-C-1

65

80

8

70

0.265

60

28

0.909

GJHQ-C-2

80

80

8

85

0.400

60

42

1.53

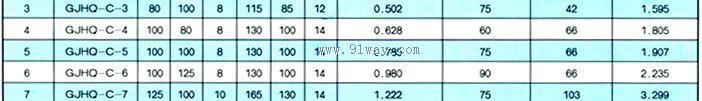

GJHQ-C-3

80

100

8

85

0.502

75

42

1.595

GJHQ-C-4

100

80

8

100

0.628

60

66

1.805

GJHQ-C-5

100

100

8

100

0.785

75

66

1.907

GJHQ-C-6

100

125

8

100

0.980

90

66

2.235

GJHQ-C-7

125

100

10

130

1.222

75

103

3.299

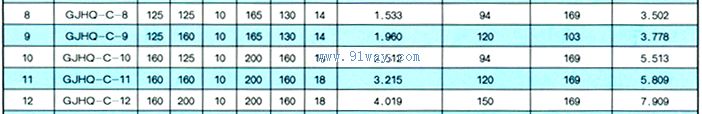

GJHQ-C-8

125

125

10

130

1.533

94

169

3.502

GJHQ-C-9

125

160

10

130

1.960

120

103

3.778

GJHQ-C-10

160

125

10

160

2.512

94

169

5.513

GJHQ-C-11

160

160

10

160

3.215

120

169

5.809

GJHQ-C-12

160

200

10

160

4.019

150

169

7.909

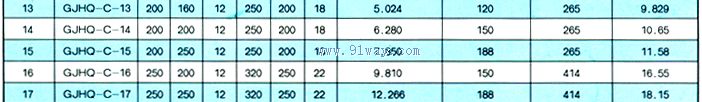

GJHQ-C-13

200

160

12

200

5.024

120

265

9.829

GJHQ-C-14

200

200

12

200

6.280

150

265

10.65

GJHQ-C-15

200

250

12

200

7.850

188

265

11.58

GJHQ-C-16

250

200

12

250

9.810

150

414

16.55

GJHQ-C-17

250

250

12

250

12.266

188

414

18.15

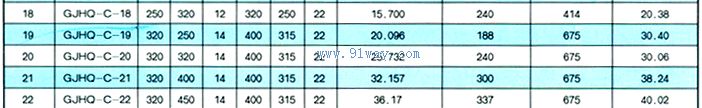

GJHQ-C-18

250

320

12

250

15.700

240

414

20.38

GJHQ-C-19

320

250

14

315

20.096

188

675

30.4

GJHQ-C-20

320

320

14

315

25.732

240

675

30.06

GJHQ-C-21

320

400

14

315

32.154

300

675

38.24

GJHQ-C-22

320

450

14

315

36.170

337

675

40.02

GJHQ-C-23

400

450

14

370

56.500

337

1054

65.27

GJHQ-C-24

400

300

14

370

37.700

225

1054

53

GJHQ-C-25

430

450

14

370

65.300

337

1218

71.4

GJHQ-C-26

430

480

14

370

69.700

360

1218

74.3

GJHQ-C-27

430

500

14

370

72.600

375

1218

76.2

GJHQ-C-28

500

450

14

500

88.300

337

1647

107

GJHQ-C-29

800

1000

16

800

502.300

750

4218

290
