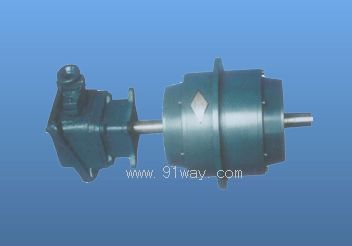

产品名称: | YBDW系列隔爆型低噪声外转子三相异步电动机 | |||||
型号规格: | |
|||||
产品类别: | 常规产品 -- 电机产品 -- 防爆电机 | |||||
参考价格: | 厂价直销 | |||||
产品品牌: | 国产 | |||||
产品产地: | 上海 | |||||
可供数量: | 批量 | |||||
供货周期: | 现货(或电询) | |||||
|
||||||
产品简介: |
|
YBDW系列隔爆型低噪声外转子三相异步电动机是YDW系列电机的派生产品,是隔爆型、IIB类、T4组别的防爆电气设备,可用于除煤矿外的其他爆炸性气体环境中。

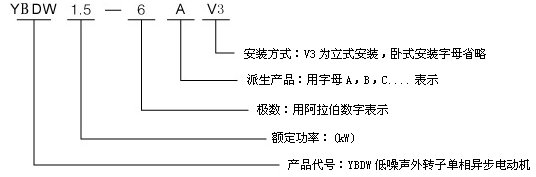

型号说明
使用环境条件
A:海拔不超过1000m。 B:环境温度随季节变化,但不超过40摄氏度。 C:相对湿度不大于90%(25℃时)
额定参数
额定电压:380V 额定频率:50Hz 工作方式:连续(S1) 绝缘等级:B级、F级 防护等级:IP44、IP54

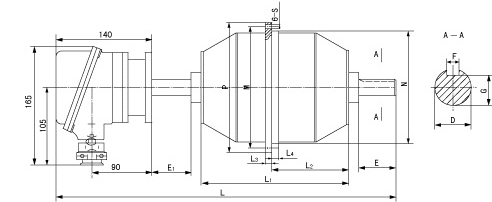

外形尺寸及安装尺寸
型号 |
安装尺寸 |
外形尺寸 | |||||||||||||||||||||
M |
N |
S |
D |
E |
E1 |
F |
G |
P |
L |
L1 |
L2 |
L3 |
L4 | ||||||||||
YBDW0.25-6 |
Φ177.5 |
|
M6
|
|
53
|
58 |
8
|
|
Φ190
|
472
|
216
|
110
|
10
|
10
| |||||||||
YBDW0.25-4 | |||||||||||||||||||||||
YBDW0.32-4 | |||||||||||||||||||||||
YBDW0.37-4 | |||||||||||||||||||||||
YBDW0.32-6 |
Φ177.5
|
|
M6
|
|
45 |
50
|
8
|
|
Φ190
|
472
|
231
|
117
|
10 |
10
| |||||||||
YBDW0.37-6 | |||||||||||||||||||||||
YBDW0.45-6 | |||||||||||||||||||||||
YBDW0.45-4 | |||||||||||||||||||||||
YBDW0.55-4 | |||||||||||||||||||||||
YBDW0.55-6 |
Φ177.5
|
|
M6
|
|
45
|
50
|
8 |
|
Φ190
|
485 |
246 |
125 |
10 |
10
| |||||||||
YBDW0.8-4A |
495 |
256 |
130 | ||||||||||||||||||||
YBDW1.1-4A |
521 |
281 |
143 |

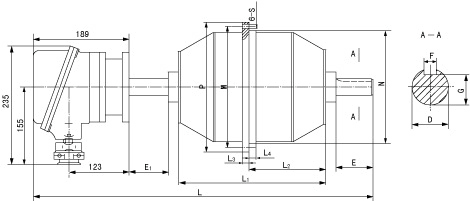

外形尺寸及安装尺寸
型号 |
安装尺寸 |
外形尺寸 | ||||||||||||||||||
M |
N |
S |
D |
E |
E1 |
F |
G |
P |
L |
L1 |
L2 |
L3 |
L4 | |||||||
YBDW0.8-6 |
Φ235 |
|
Φ12 |
|
50 |
60 |
8 |
24 |
Φ255 |
587 |
269 |
136.5 |
15 |
10 | ||||||
YBDW1.1-6 |
279 |
141.5 | ||||||||||||||||||
YBDW1.5-6 |
Φ250 |
|
Φ12 |
|
65 |
70 |
8 |
24 |
Φ280 |
297 |
272 |
139 |
15 |
10 | ||||||
YBDW1.8-6 |
56.5 |
63.5 |
287 |
146 | ||||||||||||||||
YBDW2.2-6 |
55 |
65 |
612 |
302 |
154 | |||||||||||||||
YBDW3.0-6 |
Φ275 |
|
Φ14 |
|
65 |
90 |
10 |
33 |
Φ300 |
670 |
324 |
165 |
15 |
10 | ||||||
YBDW4.0-6 |
65 |
74 |
694 |
364 |
185 | |||||||||||||||
YBDW5.5-6 |
Φ310 |
|
Φ14 |
|
75 |
100 |
12 |
37 |
Φ340 |
774 |
405 |
205 |
18 |
10 | ||||||
YBDW7.5-6 |
794 |
425 |
225 | |||||||||||||||||
YBDW0.8-4 |
Φ216 |
|
M8 |
|
55 |
65 |
8 |
24 |
Φ232 |
595 |
265 |
130 |
15 |
10 | ||||||
YBDW1.1-4 | ||||||||||||||||||||
YBDW1.5-4 |
65 |
625 |
295 |
151 | ||||||||||||||||
YBDW1.8-4 |
Φ230 |
|
Φ12 |
|
55 |
65 |
8 |
24 |
Φ250 |
640 |
310 |
158 |
15 |
10 | ||||||
YBDW2.2-4 |
55 |
65 |
660 |
330 |
168 | |||||||||||||||
YBDW3.0-4 |
65 |
695 |
365 |
186 | ||||||||||||||||
YBDW4.0-4 |
725 |
395 |
201 |
技术数据
型号 |
额定功率
(kW) |
转速
(r/min) |
电流
(A) |
效率
(%) |
功率因数
(cosΦ) |
最大转矩/额定转矩
Tm/TN |
堵转转矩/额定转矩
Ts/TN |
噪声
dB(A) |
YBDW0.25-6 |
0.25 |
920 |
1.04 |
63 |
0.56 |
2.0 |
1.8 |
47 |
YBDW0.32-6 |
0.32 |
900 |
1.29 |
63 |
0.60 |
2.0 |
1.8 |
47 |
YBDW0.37-6 |
0.37 |
900 |
1.33 |
64 |
0.66 |
2.0 |
1.8 |
47 |
YBDW0.45-6 |
0.45 |
900 |
1.48 |
68 |
0.68 |
2.0 |
1.8 |
47 |
YBDW0.55-6 |
0.55 |
900 |
1.78 |
69 |
0.68 |
2.0 |
1.8 |
47 |
YBDW0.8-6 |
0.8 |
920 |
2.55 |
70 |
0.68 |
2.0 |
1.8 |
47 |
YBDW1.1-6 |
1.1 |
920 |
3.3 |
72 |
0.70 |
2.0 |
1.8 |
47 |
YBDW1.5-6 |
1.5 |
920 |
4.2 |
75 |
0.73 |
2.0 |
1.8 |
50 |
YBDW1.8-6 |
1.8 |
920 |
4.8 |
77 |
0.74 |
2.0 |
1.8 |
50 |
YBDW2.2-6 |
2.2 |
920 |
5.6 |
79 |
0.75 |
2.0 |
1.8 |
50 |
YBDW3.0-6 |
3.0 |
920 |
7.6 |
80 |
0.75 |
2.0 |
2.0 |
54 |
YBDW4.0-6 |
4.0 |
920 |
9.9 |
82 |
0.75 |
2.0 |
2.0 |
54 |
YBDW5.5-6 |
5.5 |
950 |
13.3 |
84 |
0.75 |
2.0 |
2.0 |
54 |
YBDW7.5-6 |
7.5 |
950 |
17.7 |
86 |
0.75 |
2.0 |
2.0 |
54 |
YBDW0.25-4 |
0.25 |
1350 |
0.82 |
66 |
0.70 |
2.0 |
1.8 |
50 |
YBDW0.32-4 |
0.32 |
1320 |
1.05 |
66 |
0.73 |
2.0 |
1.8 |
50 |
YBDW0.37-4 |
0.37 |
1350 |
1.18 |
68 |
0.70 |
2.0 |
1.8 |
50 |
YBDW0.45-4 |
0.45 |
1350 |
1.36 |
70 |
0.72 |
2.0 |
1.8 |
50 |
YBDW0.55-4 |
0.55 |
1350 |
1.57 |
72 |
0.74 |
2.0 |
1.8 |
50 |
YBDW0.8-4A |
0.8 |
1350 |
2.28 |
70 |
0.76 |
2.0 |
1.8 |
50 |
YBDW0.8-4 |
0.8 |
1350 |
2.08 |
75 |
0.78 |
2.0 |
1.8 |
50 |
YBDW1.1-4A |
1.1 |
1350 |
2.94 |
75 |
0.76 |
2.0 |
1.8 |
50 |
YBDW1.1-4 |
1.1 |
1370 |
2.86 |
75 |
0.78 |
2.0 |
2.0 |
50 |
YBDW1.5-4 |
1.5 |
1400 |
3.79 |
77 |
0.78 |
2.0 |
2.0 |
54 |
YBDW1.8-4 |
1.8 |
1400 |
4.55 |
77 |
0.78 |
2.0 |
2.0 |
54 |
YBDW2.2-4 |
2.2 |
1400 |
5.42 |
78 |
0.79 |
2.0 |
2.0 |
54 |
YBDW3.0-4 |
3.0 |
1420 |
7.04 |
82 |
0.79 |
2.0 |
2.0 |
57 |
YBDW4.0-4 |
4.0 |
1420 |
9.27 |
83 |
0.79 |
2.0 |
2.0 |
57 |
