C101N直滑电位器电气特性

全阻值 :500Ω-1MΩ
全阻值公差:±20%
阻抗特性型式:A,B,C,D
杂音:Less than 100mV
绝缘阻抗:5~15mm:More than 50MΩat DC 100V 20mm:More than 50MΩat DC 250V
耐电压:5~15mm:1 minute at AC 100V 20mm:1 minute at AC 250V
残留阻值:Term.1~2:Less than 10Ω Term.2~3:Less than 10Ω
同步误差(双联):-40dB~0dB±3dB
额定电压
B线性:4mm,5mm:AC 50V 10mm 15mm:AC 100V 20mm:AC 200V
其它线性:4mm,5mm:AC 25V 10mm,15mm:AC 50V 20mm:AC 150V
额定功率(单联/双联)
B线性:4mm,5mm:0.01W/0.005W 10mm:0.03W/0.015W 15mm:0.05W/0.025W 20mm:0.1W/-
其它线性:4mm,5mm:0.025W/0.012W 10mm:0.015W/0.01W 15mm:0.025W/0.01W 20mm:0.05W/-

机械特性
作用力:20~200 gf.cm
段位滑出力(only Center Click)
作用力:30~300 gf.cm
止动强度:2.50Kgf.cm Min(from the base level to a point of 2mm)
滑柄水平晃动量:2(2xL)/25mm Max.(L:Level length both sides)
水平推拉强度:1.0 Kgf Min. at 10sec.
耐久性能
旋转寿命:5000 Cycles

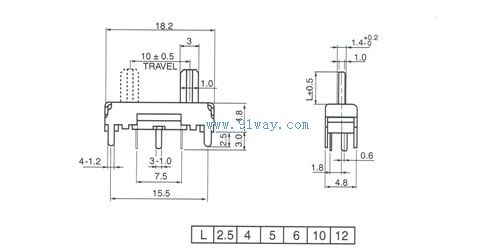

C101N直滑电位器
