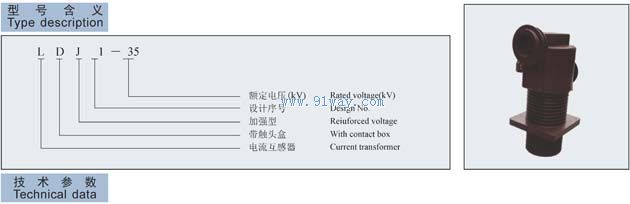

产品名称: | LDJ1-35系列35kV电流互感器 | |||||
型号规格: | |
|||||
产品类别: | 常规产品 -- 高压电器 -- 35KV电流互感器 | |||||
参考价格: | 厂价直销 | |||||
产品品牌: | 国产 | |||||
产品产地: | 上海 | |||||
可供数量: | 批量 | |||||
供货周期: | 现货(或电询) | |||||
|
||||||
产品简介: |
|
额定一次电流 Rated primary current (A) |
准确级组合及额定输出(VA) Accuracy classes and Rated output (VA) |
额定短时热电流 (kA)/时间(s) Short-time Thermal Current (kA/S) |
额定动稳定电流 (峰值)(kA) Rated dynamic current (kA Peak) | |||
0.2/10P10 | 0.5/10P10 | 0.2/0.5 | 10P10/10P10 | |||
15~300 | 10/30 | 20/30 | 10/20 | 20/20 | 150I1n | 375I1n |
400 | 10/40 | 15/40 | 10/15 | 20/20 | 63 | 130 |
500 | 10/40 | 15/40 | 10/15 | 25/25 | ||
600 | 10/50 | 30/50 | 10/30 | 30/30 | ||
800 | 15/50 | 30/50 | 15/30 | 30/30 | ||
1000~2000 | 20/50 | 50/50 | 20/50 | 40/40 | 80 |
