产品名称： | JR,JR-K四变二线夹 | ||||
| 型号规格： |   暂无图片 |
|||||
| 产品类别： | 常规产品 -- 备品配件 -- 线路金具 | |||||
| |
参考价格： | 厂价直销 | ||||
| 产品品牌： | 国产 | |||||
| 产品产地： | 上海 | |||||
| |
可供数量： | 批量 | ||||
| 供货周期： | 现货(或电询) | |||||
 |
|
|||||
| |
产品简介： |
|
||||

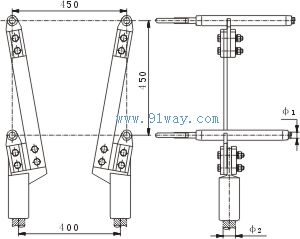

| 型号 | 适用导线 | 主要尺寸(mm) | 重量(kg) | ||
| 四导线 | 两导线 | Φ1 | Φ2 | ||
| JR-2/4-300/40-900K | LGJ-300/40 | LGKK-900 | 23.94 | 49.00 | 25.0 |
| JR-2/4-300/40-1400 | LGJ-300/40 | LGJQT-1400 | 23.94 | 51.00 | 26.5 |
| JR-2/4-300/40-1400K | LGJ-300/40 | NAHLGJQ-1440 | 23.94 | 51.36 | 27.0 |
| JR-2/4-400/50-900K | LGJ-400/50 | LGKK-900 | 27.63 | 49.00 | 25.0 |
| JR-2/4-400/50-1400 | LGJ-400/50 | LGJQT-1400 | 27.63 | 51.00 | 26.5 |
| JR-2/4-400/50-1400K | LGJ-400/50 | NAHLGJQ-1440 | 27.63 | 51.36 | 27.0 |

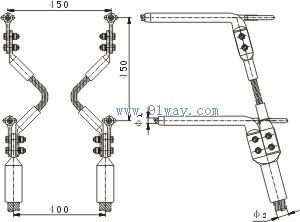

| 型号 | 适用导线 | 主要尺寸(mm) | 重量(kg) | ||
| 四导线 | 两导线 | Φ1 | Φ2 | ||
| JR-2/4-300/40-900K | LGJ-300/40 | LGKK-900 | 23.94 | 49.00 | 24.0 |
| JR-2/4-300/40-1400 | LGJ-300/40 | LGJQT-1400 | 23.94 | 51.00 | 24.8 |
| JR-2/4-300/40-1400K | LGJ-300/40 | NRLH58GJ-1440 | 23.94 | 51.36 | 25.5 |
| JR-2/4-400/50-900K | LGJ-400/50 | LGKK-900 | 27.63 | 49.00 | 24.0 |
| JR-2/4-400/50-1400 | LGJ-400/50 | LGJQT-1400 | 27.63 | 51.00 | 24.8 |
| JR-2/4-400/50-1400K | LGJ-400/50 | NRLH58GJ-1440 | 27.63 | 51.36 | 25.5 |

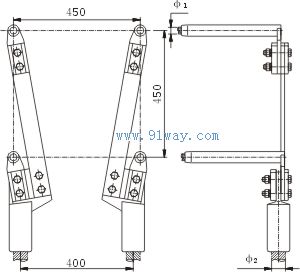

| 型号 | 适用导线 | 主要尺寸(mm) | 重量(kg) | ||
| 四导线 | 两导线 | Φ1 | Φ2 | ||
| JR-2/4-300/40-900K | LGJ-300/40 | LGKK-900 | 23.94 | 49.00 | 15.8 |
| JR-2/4-300/40-1400 | LGJ-300/40 | LGJQT-1400 | 23.94 | 51.00 | 17.4 |
| JR-2/4-300/40-1400K | LGJ-300/40 | NRLH58GJ-1440 | 23.94 | 51.36 | 16.8 |
| JR-2/4-400/50-900K | LGJ-400/50 | LGKK-900 | 27.63 | 49.00 | 15.8 |
| JR-2/4-400/50-1400 | LGJ-400/50 | LGJQT-1400 | 27.63 | 51.00 | 17.4 |
| JR-2/4-400/50-1400K | LGJ-400/50 | NRLH58GJ-1440 | 27.63 | 51.36 | 16.8 |

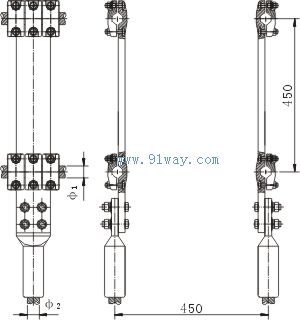

| 型号 | 适用导线 | 主要尺寸(mm) | 重量(kg) | ||
| 四导线 | 两导线 | Φ1 | Φ2 | ||
| JR-2/4-300/40-900K | LGJ-300/40 | LGKK-900 | 23.94 | 49.00 | 23.0 |
| JR-2/4-300/40-1400 | LGJ-300/40 | LGJQT-1400 | 23.94 | 51.00 | 23.5 |
| JR-2/4-300/40-1400K | LGJ-300/40 | NRLH58GJ-1440 | 23.94 | 51.36 | 24.0 |
| JR-2/4-400/50-900K | LGJ-400/50 | LGKK-900 | 27.63 | 49.00 | 23.0 |
| JR-2/4-400/50-1400 | LGJ-400/50 | LGJQT-1400 | 27.63 | 51.00 | 23.5 |
| JR-2/4-400/50-1400K | LGJ-400/50 | NRLH58GJ-1440 | 27.63 | 51.36 | 24.0 |
