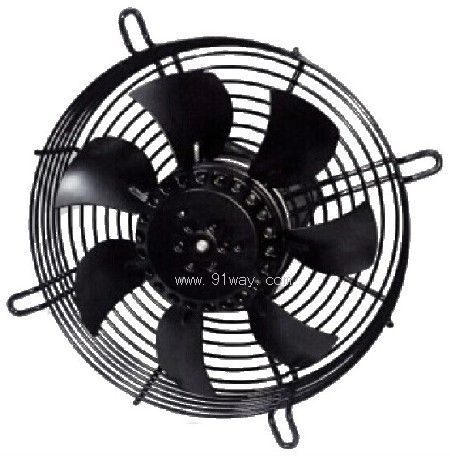

产品名称: | YWF.A2S,A2T,A4S,A4T-250S型外转子轴流风机 | ||||
型号规格: | ![]() ![]() |
|||||
产品类别: | 常规产品 -- 泵阀管件 -- 轴流风机 | |||||
![]() |
参考价格: | 厂价直销 | ||||
产品品牌: | 国产 | |||||
产品产地: | 上海 | |||||
![]() |
可供数量: | 批量 | ||||
供货周期: | 现货(或电询) | |||||
![]() |
|
|||||
![]() |
产品简介: |
|
型号 | 额定电压 [V] |
频率 [Hz] |
额定电流 [A] |
输入功率 [W] |
转速 [R/min] |
风量 [m³/h] |
YWF.A2S-250S-5D1A00 | 230 | 50/60 | 0.45/0.59 | 100/130 | 2480/2600 | 1330/1500 |
YWF.A2T-250S-5D1A00 | 400 | 50/60 | 0.18/0.20 | 90/116 | 2430/2550 | 1330/1500 |
YWF.A4S-250S-5D1A00 | 230 | 50/60 | 0.25/0.30 | 55/58 | 1400/1620 | 860/1000 |
YWF.A4T-250S-5D1A00 | 400 | 50/60 | 0.18/0.14 | 60/50 | 1400/1650 | 860/1000 |
YWF.A2S-250S-5D1A05 | 115 | 50/60 | 0.93/1.0 | 100/120 | 2480/2650 | 1330/1500 |
YWF.A4S-250S-5D1A05 | 115 | 50/60 | 0.44/0.48 | 48/55 | 1350/1600 | 860/1000 |
YWF.A2S-250S-7HI1A00 | 220/230 | 50/60 | 0.50/0.65 | 120/150 | 2600/2900 | 1850/1960 |
YWF.A2T-250S-7HI1A00 | 380/400 | 50/60 | 0.19/0.20 | 115/150 | 2600/2900 | 1850/1960 |
YWF.A2S-250S-7HI1A05 | 115/120 | 50/60 | 1.10/1.35 | 124/155 | 2600/2900 | 1850/1960 |
