产品名称: | BCZ8060系列防爆插接装置(ⅡC) | |||||
型号规格: | |
|||||
产品类别: | 常规产品 -- 特种电器 -- 防爆主令 | |||||
参考价格: | 厂价直销 | |||||
产品品牌: | 国产 | |||||
产品产地: | 上海 | |||||
可供数量: | 批量 | |||||
供货周期: | 现货(或电询) | |||||
|
||||||
产品简介: |
|
产品型号 Type |
额定电压(V) Rated voltage (V) |
额定电流 Rated current (A) |
防爆标志 Ex-mark |
极数 Poles |
图例 Chart |
进线口螺纹(G〃) lnlet s thread |
电缆外径(φ,mm) Cable's outer diameter |
防护等级 Protection class |
防腐等级 Corrosion-proof grade |
BCZ8060-16 |
220 |
16 |
Exed IICT6 |
1P+N+PE |
○ |
3/4 |
8~14 |
IP65 |
WF2 |
380 |
3P+N+PE |
○ | |||||||
BCZ8060-32 |
220 |
32 |
Exed IICT6 |
1P+N+PE |
○ |
1 |
12~17 | ||
380 |
3P+N+PE |
○ | |||||||
BCZ8060-63 |
220 |
63 |
Exed IICT6 |
1P+N+PE |
○ |
11/2 |
19~28 | ||
380 |
3P+N+PE |
○ |
使用类别 Using sort |
额定电压(V) Rated voltage (V) |
额定电流 Rated current (A) |
防爆标志 Ex-mark |
极数 Poles |
图例 Chart |
进线口螺纹(G〃)
lnlet s thread |
防护等级 Protection class |
防腐等级 Corrosion-proof grade |
BCZ8060-16/□L
|
220 |
16 |
Exed IICT6
|
1P+N+PE |
○ |
3/4-1
|
IP65 |
WF2 |
380
|
3P+N+PE
|
○ |

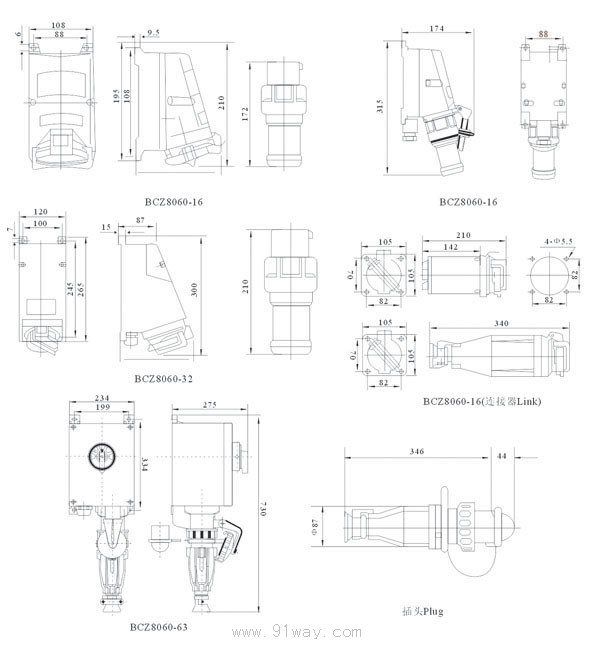

产品外形图
