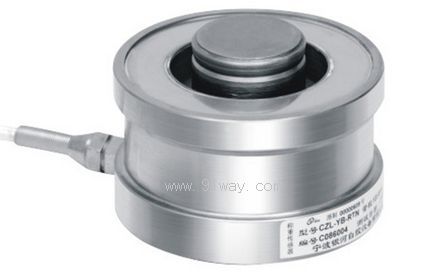

CZL-YB-RTN(CZL-YB-RTN-H High temperature type) weighing sensorDetailed product description：

CZL-YB-RTN (CZL-YB-RTN-H high-temperature type) weighing sensor has high accuracy, reliable performance, and low height. It can directly replace Shenke's RTN sensor and is suitable for hopper scales, ladle scales, etc. There are three forms of weighing components, among which YHRTN-ZJ3 is used in situations with severe vibration.

Main technical specifications of CZL-YB-RTN (CZL-YB-RTN-H high-temperature type) weighing sensor
Specification: 1-470t
Accuracy level: 0.02, 0.03, 0.05 at room temperature, 0.1, 0.2 at high temperature
Working temperature: normal temperature -20~65 ℃, high temperature -20~250 ℃
Safe overload: 150% FS
Insulation resistance: ≥ 5000M Ω
Cable length: 5m for 1-10t, 10m for 15-470t
