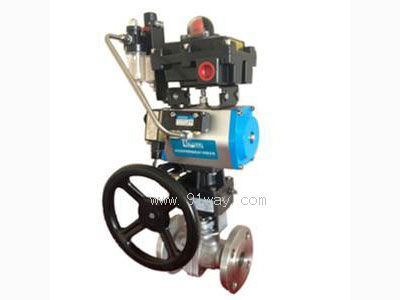

PSRQ641F pneumatic ball valve is a novel pneumatic self-control product carefully manufactured based on the introduction of foreign technology and updated design. Using electromagnetic directional valves or directly configuring springs (single acting spring reset) and 4-7kgf/cm2 air source to control valve angle operation inside the cylinder; Powered by compressed air, the valve stem drives the valve core to rotate 90 ℃ inside the valve body, achieving a fully open to fully open angle function. This product is divided into metal seals and soft seals based on its sealing performance. It has the characteristics of compact structure, small volume, reliable operation, good sealing, easy maintenance, convenient installation, and strong adaptability. It can be widely used in automatic control systems for industries such as petroleum/chemical, teaching equipment, light industry, high-voltage equipment, pharmaceuticals, papermaking, etc., for remote centralized control or on-site control.

1、 PSRQ641F Pneumatic Ball Valve Technical Parameters

1. Nominal diameter: 15~200mm;
2. Nominal pressure: 1.6Mpa, 2.5Mpa, 4.0Mpa, 6.4Mpa, 10Mpa, 16Mpa, 150Lb, 300Lb, 600Lb;
3. Connection type: flange type according to JB78-59 JB79-59;
4. Packing: V-shaped polytetrafluoroethylene packing, flexible graphite;
5. Valve body materials: WCB, 304SS, 316SS, 316LSS, WCB lined with PTFE, 304 lined with PTFE, etc;
6. Temperature range: normal temperature -40 ℃~150 ℃, medium temperature -40 ℃~300 ℃, high temperature -40 ℃~450 ℃;
7. Valve core type: O-type straight through type;
8. Valve core material: 1cr18Ni9TI 0017Ni12Mo2Ti;
9. Valve seat material: polytetrafluoroethylene (PTFE), polystyrene (PPL), body hard seal, hard alloy;
10. Cylinder form: piston type single acting (spring reset) or piston type double acting;
11. Gas source pressure: 4-7 kgf/cm2;
12. Gas consumption: 1~131L;
13. Cylinder switch time: Double acting for 1-7 seconds;
14. Electromagnetic valve voltage: 220VAC, 110VAC, 24VDC;
15. Optional accessories: Electromagnetic directional valve (explosion-proof or non explosion-proof), limit switch (explosion-proof or non explosion-proof), air filter pressure reducer, manual device;

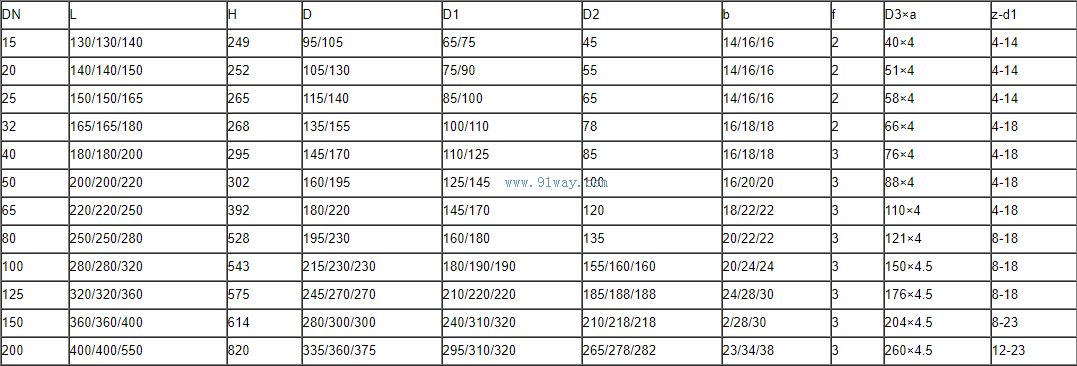

2、 Installation dimensions (PN1.6/2.5/4.0)
