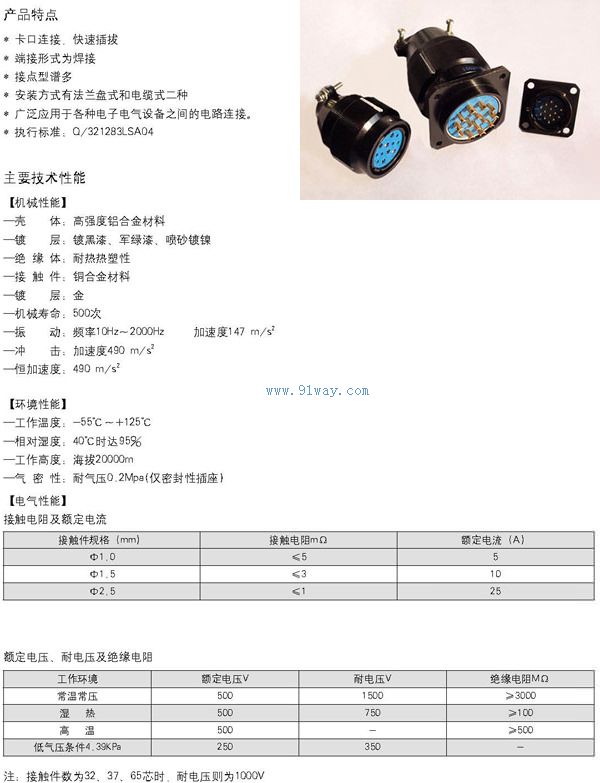

The LYP series circular aviation plug housing is made of high-strength aluminum alloy material and is connected by a bayonet type outer groove. It has the advantages of small size, light weight, easy use, resistance to insertion and extraction, good sealing, corrosion resistance, good conductivity, and good pressure resistance. It can also be interchanged with the YP series and is an ideal replacement product for the old-fashioned "P" type connector. It is widely used for circuit connections between electrical equipment and various instruments and meters.

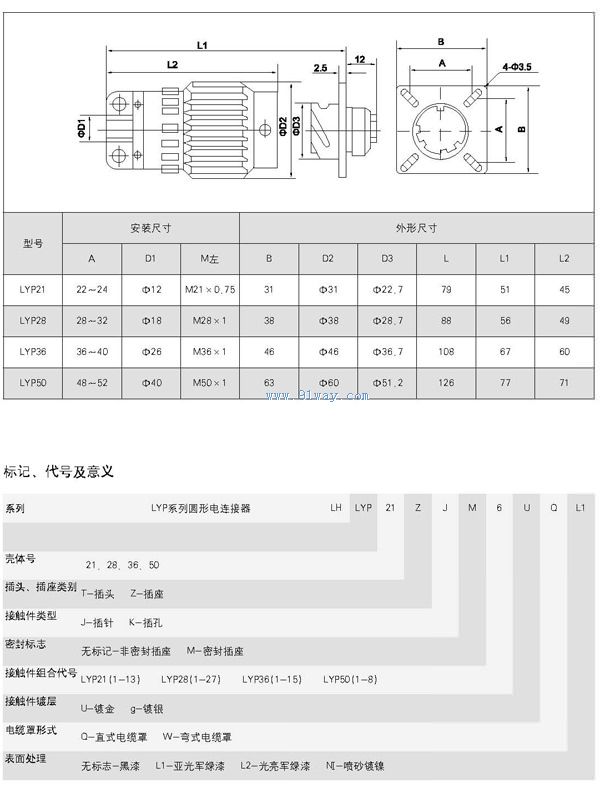

Technical parameters of LYP series circular aviation plug

1. Environmental technical performance
Working temperature: Welding type -55 ℃~125 ℃, crimping type -55 ℃~200 ℃
Relative humidity: 95% at 40 ℃
Working altitude: 20000m above sea level
Vibration: frequency 10Hz~2000Hz, acceleration 196m/s2
Impact: Acceleration of 490m/s2
Constant acceleration: 490m/s2
Airtightness: air pressure resistance ≥ 0.2Mpa (only for sealed types)
2. Electrical performance
Contact resistance and rated current:
Contact specifications (mm) Contact resistance (m Ω) Rated current (A)
￠ 0.8 ≤ 8 3
￠ 1.0 ≤ 5 5
￠ 1.5 ≤ 3 10
￠ 2.5 ≤ 1 25

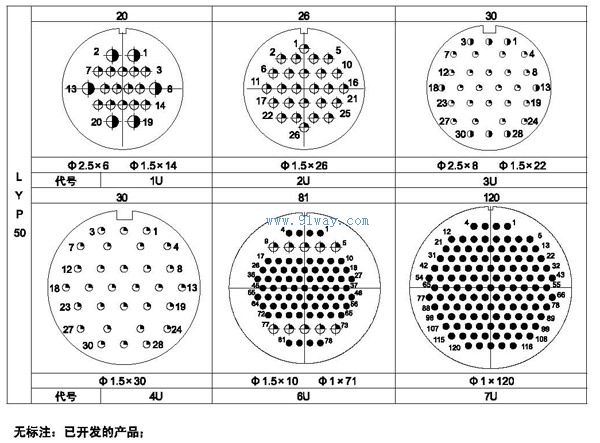

Contact and Voltage Endurance: Number of Contact and Voltage Endurance (V)
3. 4, 5, 7, 10, 14, 19 1500
24, 32, 36, 37, 50, 65, 81, 120 1000

Rated voltage, withstand voltage, and insulation resistance: Working environment rated voltage (V), withstand voltage (V), insulation resistance (m Ω)
Normal temperature and pressure 500 1500 ≥ 3000
Damp heat 500 1125 ≥ 20
High temperature 500 ≥ 500
Low pressure condition 4.39KPa 250 350-


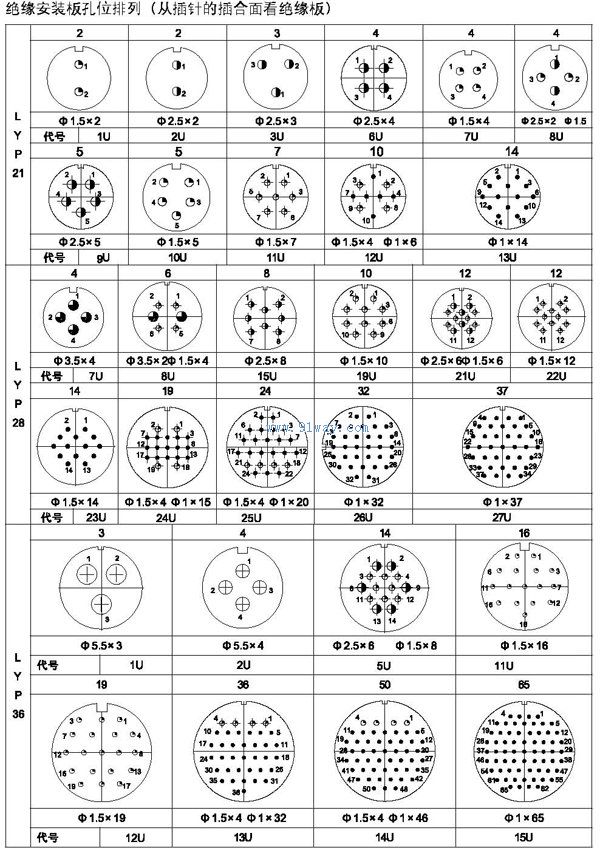

Contact resistance and rated current:
Contact specifications (mm) Contact resistance (m Ω) Rated current (A)
￠ 0.8 ≤ 8 3
￠ 1.0 ≤ 5 5
￠ 1.5 ≤ 3 10
￠ 2.5 ≤ 1 25
￠ 3.5 ≤ 1 50
￠ 5.5 ≤ 1 100


Compression type pinhole axial load reference Y2 series
The inner diameter of the contact crimping tube and the cross-sectional area of the adapted wire refer to the Y2 series
3. LYP series circular aviation plug mechanical properties:
Shell: High strength aluminum alloy material
Coating: anodizing coloring, nickel plating
Insulator: heat-resistant thermoplastic or hot solid material
Contact: Copper alloy material coated with gold and silver
Mechanical lifespan: 500 cycles
