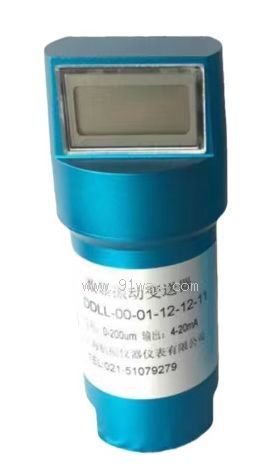

DDLL-00-12-12-11 Digital vibration transmitterDetailed product description：

The DDLL-00-12-12-11 digital vibration transmitter is based on the HZ-892A integrated vibration sensor with a digital display screen. It displays the effective value of vibration velocity or peak to peak value of vibration displacement through the LCD screen, and has a standard 4-20mA current output. It can be directly connected to DCS, PLC or other equipment, truly realizing the "sensor ten monitoring instrument" vibration monitoring function. This product is easy to observe on site, has excellent performance, and is relatively affordable compared to vibration monitoring instruments. It is an ideal choice for factory equipment vibration measurement and monitoring.

DDLL-00-12-12-11 Digital Vibration Transmitter Technical Parameters:

Frequency response: 5-1000 Hz
2. Natural frequency: 4.5Hz or 10Hz
3 Measurement range: 0-20mm/s (effective velocity), 0-200um (peak to peak displacement)
4 signal output: 4-20mA (± 0.05mA)
5 output impedance: ≤ 500 Ω
