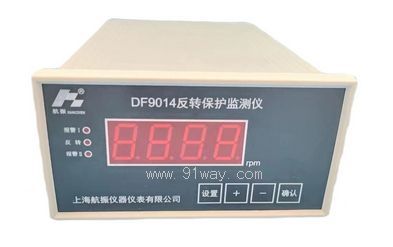

DF9014 Positive and negative rotation speed monitoring deviceDetailed product description：

The DF9014 forward and reverse speed monitoring device can monitor the speed and direction of rotating machinery. It has a reverse speed protection group that requires two channels of sensor input signals to output its corresponding speed and reverse alarm status.
The speed is displayed on the panel by a digital tube and converted into a 4-20mADC analog signal. This instrument has an alarm function, which outputs overspeed and reverse alarms through their respective contact signals. Based on advanced intelligent design, this instrument can also remember historical maximum values. In addition, the instrument supports optional RS485 communication interface, and the measured values, alarm status, etc. of the instrument can be read through the data bus.

DF9014 forward and reverse rotation meter is suitable for various rotating machinery, such as pumps, water turbines, etc.
Main technical indicators:
Input sensor type
HZ-891XL Eddy Current Sensor
Proximity switch
Display: 5-digit LED digital display
alarm output
Two SPDT relay outputs: contact capacity 220VAC, 3A
LED alarm status indicator light
Alarm delay: 0-20 seconds
transmitter output
4-20mA DC current output, load capacity greater than 600 Ω
Communication interface: RS485 standard
Working power supply: 220VAC or 24VDC, power consumption ≤ 10W

Installation method of DF9014 forward and reverse speed monitoring instrument

Panel mounted, instrument panel opening size: 152 × 76mm
physical indicators
Dimensions: 160 × 80 × 125mm
Weight: Approximately 600 grams
Installation: Install using dedicated clips
working environment
Working temperature: 0-50 ℃
Relative humidity: 0-90% RH, non condensing
