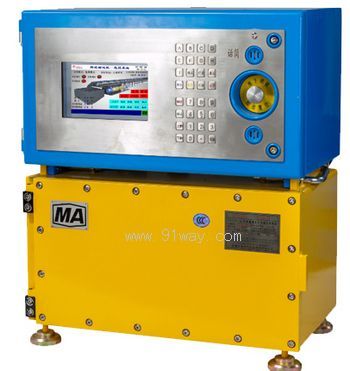

KTC169.1 Mining explosion-proof and intrinsic safety communication controllerDetailed product description：

The host of KTC169.1 mining explosion-proof and intrinsic safety communication controller adopts Siemens S7-200 SMART series CPU, analog module, etc. The operation panel consists of a touch screen, operation buttons, etc. The "page turning" button can be used to view parameter settings, fault information queries, emergency stop and lock information along the line, and equipment operation status display. The "setting", "increasing", and "decreasing" buttons can be used to set parameters.
Control equipment: belt motor (or frequency converter), brake motor, etc.

Main parameters of KTC169.1 mining explosion-proof and intrinsic safety communication controller
Rated input voltage: AC127V;
Intrinsic safety output working voltage: DC12V, DC18V;
The highest open circuit voltage of intrinsic safety output is DC12.5V and DC18.4V.
Signal transmission: RS485 signal, CAN signal;
Internal power supply battery: nickel hydrogen lithium battery pack (nominal voltage of 9.6V);

Functional Features
Display function: The color LCD screen displays graphics, animations, and Chinese characters. Graphic and animated display of the operating status of the controlled equipment; Chinese character prompts for the operating status of the controlled equipment; Monitoring and display of the start and stop status of the controlled equipment;
It has a complete voice alarm prompt function, with language alarm prompts for equipment start stop, line locking, and faults, with strong and clear sound;
There are control methods such as centralized control, on-site operation, and maintenance;
It has the functions of tapping and calling, and the call sound is clear and loud;
Equipped with over temperature and smoke sprinkler control functions;
It has the function of storing and querying fault records, which facilitates the statistical analysis of fault situations;
