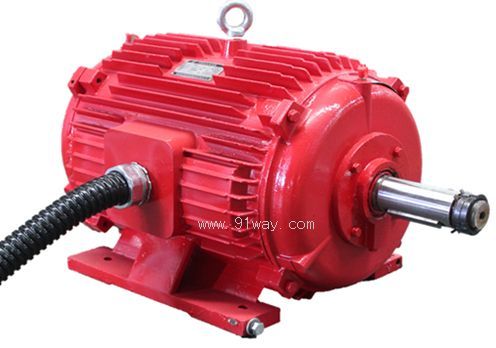

YTX series high-efficiency three-phase asynchronous motor for subway fansDetailed product description：

YTX series high-efficiency three-phase asynchronous motor for subway fans

The meaning represented by the motor model: YTX 355 M1-4 W
Y: Asynchronous motor TX: variable frequency speed regulation 355: center height of machine base (335mm) M: machine base length (middle machine base) 1:1 iron core length
4: Pole number (4 poles) W: Special environment code (outdoor type)

Basic structural parameters of YTX series high-efficiency three-phase asynchronous motor for subway fans:

Structure and installation form: IMB3，IMB5，IMB6，IMB7，IMB8，IMB14，IMB34，IMB35，IMV1，IMV3，IMV5，IMV6，IMV15，IMV17，IMV19，IMV35，IMV37 wait
Main body shell protection level: IP55
The cooling method for the electric motor is IC418
The insulation level of the electric motor is F level

4、 Technical parameters
Rated voltage: 380 (can also be manufactured according to special voltage)
Rated frequency: 50Hz
Quota: Continuous Work System S1

performance parameters
Model
YTX series
Specification and Performance
Rated power: 0.55-200kW
Rated frequency: 50Hz
Polar number: 2-6
Rated voltage: 380V
Insulation level: F level
Work schedule: S1
Protection level: IP55
Cooling method: IC418
size
Machine base number: 80~315
