Your location：Home → Pump valve fittings → valve products → check valve → HZF series stainless steel check valve |
Product name： | HZF series stainless steel check valve | |||||
| specification： |   Zoom in on the image |
||||||
| Category： | Pump valve fittings -- check valve | ||||||
| |
Price： | factory price | |||||
| Brand： | Shanghai | ||||||
| Place of Origin： | China | ||||||
| |
Available Quantity： | batch | |||||
| delivery cycle： | Spot goods (or inquire by telephone) | ||||||
 |
|
||||||
Characteristics
All working fluids are available, not only suitable for various HFC and HCFCs refrigerants, but also for R717, lithium bromide and other systems.
New structure, reliable performance, high flow rate, and long service life.
Multiple connection forms
Fluid temperature: -40 ℃~130 ℃
Maximum working pressure: 4.5MPa
Minimum valve opening pressure difference: △ P=0.02MPa
Overview
The HZF series stainless steel (SUS304) check valve is suitable for various refrigerant system components such as liquid pipelines, suction pipelines, and hot gas bypass passages to prevent refrigerant reverse flow.

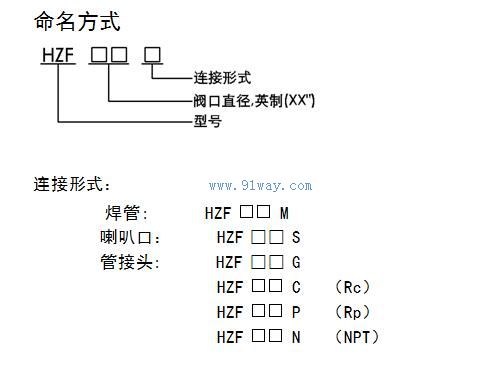

naming convention

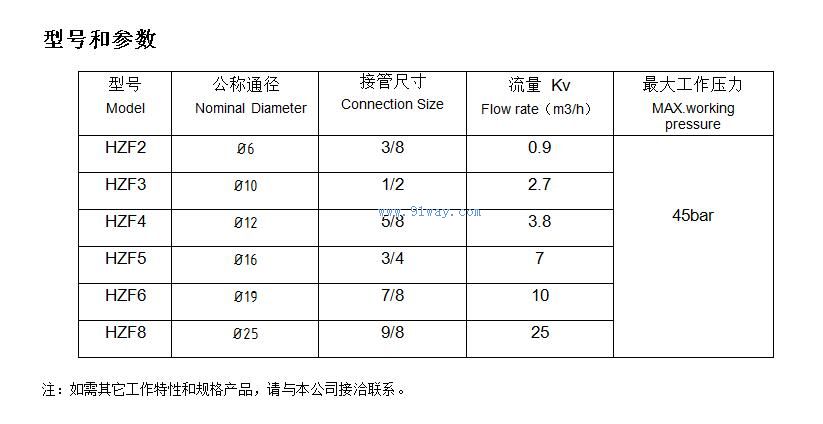

HZF series stainless steel check valve models and parameters
