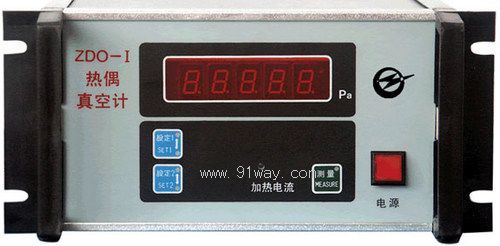

ZDO-I,ZDO-III Thermocouple vacuum gaugeDetailed product description：

Characteristics and Applications of Thermocouple Vacuum Gauge:
Thermocouple vacuum gauge (400-10-1 Pa)
The thermocouple vacuum gauge adopts a new type of short wire thermocouple gauge tube, which has the advantages of fast reaction speed (small opening for 3 seconds), long service life, and strong anti pollution ability. This instrument adopts popular microcontroller technology and linearizes the regulation of non wires; And it has added functions such as computer communication interfaces, making the instrument's readings intuitive, accurate, flexible in control and communication, convenient, and reliable, providing a means for the digital display and control automation of rough and low vacuum measurement in vacuum systems and equipment to become a reality.
LED digital display, with a display format of two digit coefficients and one digit index.
Microcomputer automatically corrects and regulates nonlinearity.
Optoelectronic isolation, strong anti-interference ability.
PVC colored panel, with a beautiful and elegant appearance.
Dual control, relay output, point control or area control, control points can be set arbitrarily and have power failure protection and memory function.

Performance parameters of thermocouple vacuum gauge:

Main parameters of ZDO-I and ZDO-III resistance vacuum gauges
model	Regulation	range	Measure the number of routes	Control the number of routes	cable	Other
ZDO-I	ZJ-53 (One) Glass with a diameter of 15.5	400～10 Pa	one	two	2M	same
ZDO-III	ZJ-53 (Two pieces) Glass with a diameter of 15.5	400～10 Pa	two	two	2M	same

Measurement range: 400~10-1 Pa
Regulatory model: ZJ-53
Heating current stability:<± 0.5%
Regulatory response time:<3S
Control range: 100~10-1 Pa
Control mode: Relay contact output, load capacity AC220V/3A non inductive load
Control channels: Two channels
Control accuracy: 1%
Instrument sampling time:<0.7S
Power supply: 220V ± 10% 50Hz
Power consumption: 25W
Weight: Approximately 3Kg
Chassis size: KBA desktop 225 × 119 × 280 (width × height × depth) KBB rack mounted (mounting) 265 × 119 × 280
