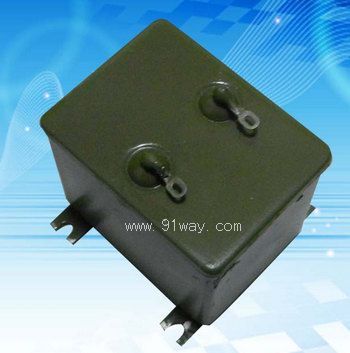

CJ48-2 Type AC Sealed Metallized Paper Dielectric CapacitorDetailed product description：

CJ48-2 AC Sealed Metallized Paper Dielectric Capacitor

Features and Applications
1. Metal casing, fully sealed structure.
2. Evaporate a metalized layer on capacitor paper as an electrode, immerse it in high-quality impregnating material, and ensure stable long-term storage performance.
3. Has good self-healing properties and is reliable for long-term use.
4. Used in power frequency AC or DC circuits.
Technical and performance indicators
1. Climate category: 55/070/21
2. Allowable deviation of capacitance: ± 5%; ±10%
3. Loss tangent: ≤ 0.01
4. Insulation resistance:
UR = 150V ≥20S
UR ≥250V ≥1000S
5. Voltage endurance: 1.3UR
6. Rated voltage range: 150V~1000V
7. Nominal capacitance range: 0.22 µ F to 10 µ F
