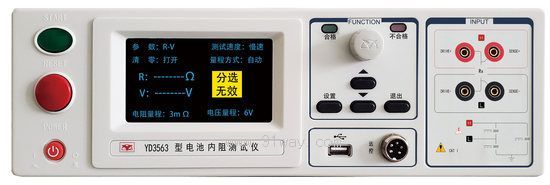

YD3563 Battery Internal Resistance TesterDetailed product description：

The YD3563 series battery internal resistance tester is a measuring instrument designed specifically for new energy lithium battery packs. It can simultaneously measure the internal resistance (AC-IR) and open circuit voltage (OCV) of the battery, effectively evaluating its performance and safety. This series of equipment has fast and highly repeatable measurement capabilities, making it particularly suitable for in/out inspection of battery cells and battery modules.

Performance characteristics
True color LCD screen display
Full Chinese menu, easy to operate
Simultaneously measure the internal resistance and voltage of the battery
High measurement accuracy, with a resistance resolution of 0.1 μ Ω and a voltage resolution of 10 μ V
Fast measurement speed
Can measure high-voltage batteries below 300V
Capable of sorting and judging voltage and resistance separately
Automatic conversion of resistance voltage range
Standard 232 interface, USB, PLC interface

Typical application of YD3563 battery internal resistance tester

Testing of high-voltage battery packs, battery modules, battery components, and fuel cells
Testing of battery mass production line
Battery R&D Laboratory

measurement method	Communication four terminal testing method
Measure current frequency	1kHz
Resistance measurement range	0 Ω~3.1k Ω (minimum resolution 0.1 μ Ω)
Resistance measurement accuracy	± 0.5% ± 5 words ± 0.5% ± 10 words (3m Ω range)
Voltage measurement range	YD3563 DC0V~± 60V (minimum resolution 10 μ V) YD3563A DC0V~± 300V (minimum resolution 10 μ V)
Voltage measurement accuracy	± 0.05% ± 5 words
resistance range	3m Ω/30m Ω/300m Ω/3 Ω/30 Ω/300 Ω/3000 Ω 7 ranges
voltage range	YD3563 6V/60V 2 Range YD3563A 6V/60V/300V with 3 ranges
Measuring speed	Super fast: 70 times/second; Fast: 30 times/second; Medium speed: 10 times/second; Slow speed: 4 times/second
working power supply	AC220/50Hz
working environment	Temperature: 25 ± 5 ℃; Relative humidity: ≤ 75%
Volume size	Length * Height * Depth=350 * 110 * 335mm
weight	4.5kg
