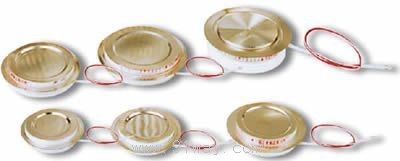

产品名称: | KK型快速晶闸管 | |||||
型号规格: | |
|||||
产品类别: | 常规产品 -- 电子电器 -- 晶闸管 | |||||
参考价格: | 厂价直销 | |||||
产品品牌: | 国产 | |||||
产品产地: | 上海 | |||||
可供数量: | 批量 | |||||
供货周期: | 现货(或电询) | |||||
|
||||||
产品简介: |
|
型 号 TYPE _**=VRRM/100 |
/T(AV) @TC= 55℃ |
VDRM VRRM |
ITSM @TVJM &10ms |
VFM @/TM &TC=TVJM |
TVJM | RthJC | RthCH | tq @TVJM |
F ±10% |
外形Outline | |
A | V | kA | A | V | ℃ | K/W | K/W | μs | kN | ||
电压至 1200V(Up to 1200V) | |||||||||||
KK6 300-** | 300 | 800-1200 | 4.1 | 600 | 2.35 | 125 | 0.08 | 0.02 | 20 | 5 | KP6 |
KK8 800-** | 800 | 600-1200 | 10.0 | 1500 | 2.08 | 125 | 0.035 | 0.008 | 25 | 15 | KP8 |
KK9 1300-** | 1300 | 800-1200 | 17.0 | 2000 | 1.85 | 125 | 0.02 | 0.005 | 25 | 22 | KP9 |
KK4 1600-** | 1600 | 800-1200 | 21.1 | 2000 | 1.75 | 125 | 0.018 | 0.005 | 25 | 30 | KP4 |
KKA 2100-** | 2100 | 800-1200 | 24.0 | 3000 | 2.00 | 125 | 0.0125 | 0.004 | 25 | 45 | KPA |
KKX 2900-** | 2900 | 800-1200 | 33.0 | 4000 | 1.80 | 125 | 0.01 | 0.003 | 25 | 56 | KPX |
电压至 1400V(Up to 1400V) | |||||||||||
KK6 300-** | 300 | 1200-1400 | 4.0 | 600 | 2.45 | 125 | 0.08 | 0.02 | 30 | 5 | KP6 |
KK8 700-** | 700 | 1200-1400 | 9.0 | 1500 | 2.46 | 125 | 0.035 | 0.008 | 30 | 15 | KP8 |
KK9 1200-** | 1200 | 1200-1400 | 16.0 | 2000 | 2.00 | 125 | 0.02 | 0.005 | 35 | 22 | KP9 |
KK4 1600-** | 1600 | 1200-1400 | 20.2 | 2000 | 1.85 | 125 | 0.018 | 0.005 | 35 | 30 | KP4 |
KKA 2100-** | 2100 | 1200-1400 | 23.0 | 3000 | 2.15 | 125 | 0.0125 | 0.004 | 35 | 45 | KPA |
KKX 2900-** | 2900 | 1200-1400 | 32.0 | 4000 | 1.90 | 125 | 0.01 | 0.003 | 35 | 56 | KPX |
电压至 2000V(Up to 2000V) | |||||||||||
KK6 300-** | 300 | 1600-2000 | 3.8 | 600 | 2.60 | 125 | 0.08 | 0.02 | 40 | 5 | KP6 |
KK8 600-** | 600 | 1600-2000 | 8.0 | 1500 | 2.80 | 125 | 0.035 | 0.008 | 40 | 15 | KP8 |
KK9 1200-** | 1200 | 1600-2000 | 15.0 | 2000 | 2.15 | 125 | 0.02 | 0.005 | 50 | 22 | KP9 |
KK4 1500-** | 1500 | 1600-2000 | 19.0 | 2000 | 2.00 | 125 | 0.018 | 0.005 | 50 | 30 | KP4 |
KKA 2000-** | 2000 | 1600-2000 | 21.0 | 3000 | 2.35 | 125 | 0.0125 | 0.004 | 50 | 45 | KPA |
KKX 2700-** | 2700 | 1600-2000 | 31.0 | 4000 | 2.15 | 125 | 0.01 | 0.003 | 50 | 56 | KPX |
电压至 2800V(Up to 2800V) | |||||||||||
KKA 2000-** | 2000 | 2200-2500 | 21.0 | 3000 | 2.60 | 125 | 0.0125 | 0.004 | 65 | 45 | KPA |
KKX 2600-** | 2600 | 2200-2500 | 27.0 | 4000 | 2.80 | 125 | 0.01 | 0.003 | 65 | 56 | KPX |
KKX 2500-** | 2500 | 2600-2800 | 26.0 | 4000 | 3.00 | 125 | 0.01 | 0.003 | 100 | 56 | KPX |
电压至 3000V(Up to 3000V) | |||||||||||
KKB 3000-** | 3000 | 2600-3000 | 35.0 | 6000 | 2.66 | 125 | 0.007 | 0.002 | 120 | 70 | KPB |
KKC 3800-** | 3800 | 2600-3000 | 45.0 | 6000 | 2.31 | 125 | 0.0057 | 0.0015 | 120 | 90 | KHC |
电压至 4500V(Up to 4500V) | |||||||||||
KKC 3200-** | 3200 | 3500-4500 | 41.0 | 4000 | 2.50 | 125 | 0.0057 | 0.0015 | 200 | 90 | KHC |
