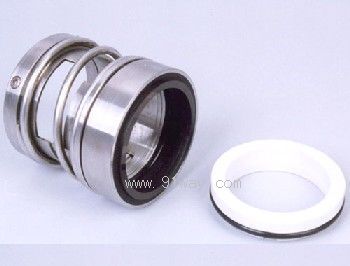

B43型机械密封
|
|
型号规格: |
|
![B43型机械密封](/upload2012/PreviewImage/2012429194907.summ.jpg)
放大图片 |
|
产品类别: |
常规产品 -- 泵阀管件
-- 机械密封件 |
|
参考价格: |
厂价直销 |
|
产品品牌: |
国产 |
|
产品产地: |
上海 |
|
可供数量: |
批量 |
|
供货周期: |
现货(或电询) |
|
|
|
|
产品简介: |
|
B43型机械密封产品详细说明:
B43型机械密封
技术参数
平衡型
单端面密封
任意旋向
介质温度:-20℃~+220℃
介质压力:0~2.4MPa
线速度:≤15m/sec
![B43型机械密封符号](/upload2012/201204/20120429195030949.jpg) |
d1 |
d2 |
D |
D1 |
D2 |
D3 |
D4 |
d0 |
L |
L1 |
L2 |
L3 |
L4 |
h6 |
h6 |
|
H8 |
H11 |
|
|
|
|
|
|
|
|
B43-18 |
18 |
22 |
38 |
33 |
27 |
23 |
36 |
3 |
60.5 |
53.5 |
20 |
9 |
6
|
B43-20 |
20 |
24 |
40 |
35 |
29 |
25 |
38 |
63.5 |
56.5 |
B43-22 |
22 |
26 |
42 |
37 |
31 |
27 |
40 |
63.5 |
56.5 |
B43-24 |
24 |
28 |
44 |
39 |
33 |
29 |
42 |
64 |
57 |
B43-25 |
25 |
30 |
46 |
40 |
34 |
30 |
44 |
65 |
58 |
B43-28 |
28 |
33 |
49 |
43 |
37 |
33 |
47 |
66.5 |
59.5 |
B43-30 |
30 |
35 |
51 |
45 |
39 |
35 |
49 |
66.5 |
59.5 |
B43-32 |
32 |
38 |
58 |
48 |
42 |
38 |
54 |
68 |
61 |
B43-33 |
33 |
38 |
58 |
48 |
42 |
38 |
54 |
68 |
61 |
B43-35 |
35 |
40 |
60 |
50 |
44 |
40 |
56 |
68 |
61 |
B43-38 |
38 |
43 |
63 |
56 |
49 |
44 |
59 |
4
|
72.5 |
65.5 |
23 |
|
B43-40 |
40 |
45 |
65 |
58 |
51 |
46 |
61 |
72.5 |
65.5 |
B43-43 |
43 |
48 |
68 |
61 |
54 |
49 |
64 |
73.5 |
66.5 |
B43-45 |
45 |
50 |
70 |
63 |
56 |
51 |
66 |
73.5 |
66.5 |
B43-48 |
48 |
53 |
73 |
66 |
59 |
54 |
69 |
77.5 |
70.5 |
B43-50 |
50 |
55 |
75 |
70 |
62 |
57 |
71 |
82 |
75 |
25 |
B43-53 |
53 |
58 |
83 |
73 |
65 |
60 |
78 |
84 |
77 |
B43-55 |
55 |
60 |
85 |
75 |
67 |
62 |
80 |
84 |
77 |
B43-58 |
58 |
63 |
88 |
78 |
70 |
65 |
83 |
86 |
79 |
6.5 |
B43-60 |
60 |
65 |
90 |
80 |
72 |
67 |
85 |
89 |
82 |
B43-63 |
63 |
68 |
93 |
83 |
75 |
70 |
88 |
89 |
82 |
B43-65 |
65 |
70 |
95 |
85 |
77 |
72 |
90 |
93 |
86 |
B43-70 |
70 |
75 |
104 |
92 |
83 |
77 |
98 |
97 |
90 |
28
|
7 |
B43-75 |
75 |
80 |
109 |
97 |
88 |
82 |
103 |
99 |
92 |
B43-80 |
80 |
85 |
114 |
105 |
95 |
88 |
108 |
100.5 |
93.5 |
B43-85 |
85 |
90 |
119 |
110 |
100 |
93 |
113 |
102.5 |
95.5 |
B43-90 |
90 |
95 |
124 |
115 |
105 |
98 |
118 |
102.5 |
95.5 |
B43-95 |
95 |
100 |
129 |
120 |
110 |
103 |
123 |
102.5 |
95.5 |
B43-100 |
100 |
105 |
134 |
125 |
115 |
108 |
128 |
102.5 |
95.5 |
B43-110 |
110 |
115 |
149 |
136 |
125 |
118 |
140 |
106.5 |
99.5 |
8 |
