产品名称: |

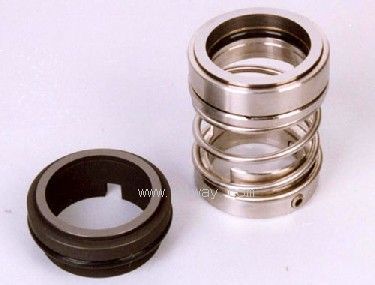

U43型机械密封
|
|
型号规格: |
|
放大图片 |
|
产品类别: |
常规产品 -- 泵阀管件
-- 机械密封件 |
|
参考价格: |
厂价直销 |
|
产品品牌: |
国产 |
|
产品产地: |
上海 |
|
可供数量: |
批量 |
|
供货周期: |
现货(或电询) |
|
|
|
|
产品简介: |
|
U43型机械密封产品详细说明:
U43型机械密封
技术参数
非平衡型
单端面密封
任意旋向
介质温度:-20℃~+220℃
介质压力:0~1MPa
线速度:≤15m/sec
|

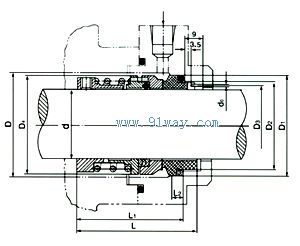

4d |
D |
D1 |
D2 |
D3 |
D4 |
d0 |
L |
L1 |
L2 |
h6 |
|
H8 |
H11 |
|
|
|
|
|
|
U43-18 |
18 |
34 |
33 |
27 |
23 |
32 |
3 |
52 |
45 |
5 |
U43-20 |
20 |
36 |
35 |
29 |
25 |
34 |
52 |
45 |
U43-22 |
22 |
38 |
37 |
31 |
27 |
36 |
53 |
46 |
U43-24 |
24 |
40 |
39 |
33 |
29 |
38 |
56 |
49 |
U43-25 |
25 |
41 |
40 |
34 |
30 |
39 |
56 |
49 |
U43-28 |
28 |
44 |
43 |
37 |
33 |
42 |
56.5 |
49.5 |
U43-30 |
30 |
46 |
45 |
39 |
35 |
44 |
57 |
50 |
U43-32 |
32 |
48 |
48 |
42 |
38 |
46 |
58.5 |
51.5 |
U43-33 |
33 |
49 |
48 |
42 |
38 |
47 |
58.5 |
51.5 |
U43-35 |
35 |
51 |
50 |
44 |
40 |
49 |
58.5 |
51.5 |
U43-38 |
38 |
58 |
56 |
49 |
44 |
54 |
4 |
62 |
55 |
6 |
U43-40 |
40 |
60 |
58 |
51 |
46 |
56 |
62 |
55 |
U43-43 |
43 |
63 |
61 |
54 |
49 |
59 |
65 |
58 |
U43-45 |
45 |
65 |
63 |
56 |
51 |
61 |
65 |
58 |
U43-48 |
48 |
68 |
66 |
59 |
54 |
64 |
66 |
59 |
U43-50 |
50 |
70 |
70 |
62 |
57 |
66 |
67 |
60 |
U43-53 |
53 |
73 |
73 |
65 |
60 |
69 |
71.5 |
64.5 |
U43-55 |
55 |
75 |
75 |
67 |
62 |
71 |
73.5 |
66.5 |
U43-58 |
58 |
83 |
78 |
70 |
65 |
78 |
76.5 |
69.5 |
6.5 |
U43-60 |
60 |
85 |
80 |
72 |
67 |
80 |
76.5 |
69.5 |
U43-63 |
63 |
88 |
83 |
75 |
70 |
83 |
78.5 |
71.5 |
U43-65 |
65 |
90 |
85 |
77 |
72 |
85 |
81.5 |
74.5 |
U43-68 |
68 |
93 |
90 |
81 |
75 |
88 |
82.5 |
75.5 |
7 |
U43-70 |
70 |
95 |
92 |
83 |
77 |
90 |
86.5 |
79.5 |
U43-75 |
75 |
104 |
97 |
88 |
82 |
98 |
87 |
80 |
U43-80 |
80 |
109 |
105 |
95 |
88 |
103 |
90.5 |
83.5 |
U43-85 |
85 |
114 |
110 |
100 |
93 |
108 |
90.5 |
83.5 |
U43-90 |
90 |
119 |
115 |
105 |
98 |
113 |
92.5 |
85.5 |
U43-95 |
95 |
124 |
120 |
110 |
103 |
118 |
93.5 |
86.5 |
U43-100 |
100 |
129 |
125 |
115 |
108 |
123 |
93.5 |
86.5 |
U43-110 |
110 |
144 |
136 |
125 |
118 |
135 |
97 |
90 |
8 |
