RSC系列有填料圆筒帽形快速熔断器产品详细说明：

RSC系列有填料圆筒帽形快速熔断器

产品型号：RSC 圆筒帽形快速熔断器
产品概述：有填料圆筒帽形快速熔断器采用GB13539、IEC60269、VDE0636标准! 适用于交流50Hz，额定电压交流240-1000V，额定电流至125A，作为半导体器件短路故障保护。

一、安装尺寸

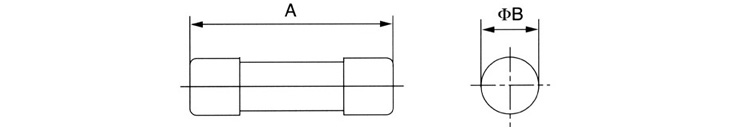

图1

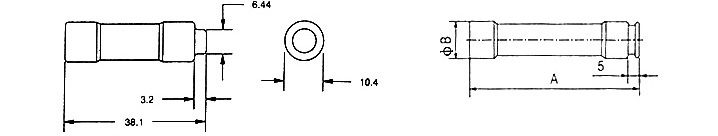

图2     图3

二、技术参数 额定电压：240-1000V 分断能力：200KA 功能等级：aR/gR

序号 No.	尺码 Size	额定电压 Rated Voltage(V)	电流等级 Class Rating(A)	尺寸Dimension(mm)
				φB	A	附图
1	φ5×20	250/500	0.5,1,2,4,6,8,10,12,13	5	20	图1
2	φ5×25	250/500	0.5,1,2,4,6,8,10,12,16	5	25	图1
3	φ6×20	250/500	0.5,1,2,4,6,8,10,12,16	6	20	图1
4	φ6.3×23	240	0.5,1,2,4,6,8,10,12,16,20	6.3	23	图1
5	φ6.3×25	250/500	0.5,1,2,4,6,8,10,12,16,20	6.3	25	图1
6	φ6.3×31.5	250/500	0.5,1,2,4,6,8,10,12,16,20	6.3	31.5	图1
7	φ8.5×23	250	0.5,1,2,4,6,8,10,12,16	8.5	23	图1
8	φ8.5×31.5	500	0.5,1,2,4,6,8,10,12,16,20,25	8.5	31.5	图1
9	φ8.5×36	380/500	2,4,6,8,10,12,16,20,25,32	8.5	36	图1
10	φ10×30	380/500	2,4,6,8,10,12,16,20,25,32	10	30	图1
11	φ10.3×25.8	250	2,4,6,8,10,12,16,20,25,32	10.3	25.8	图1
12	φ10.3×31.5	250	2,4,6,8,10,12,16,20,25,32	10.3	31.5	图1
13	φ10.3×34	380/500	2,4,6,8,10,12,16,20,25,32	10.3	34	图1
14	φ10.3×38	380/500	2,4,6,8,10,12,16,20,25,32	10.3	38	图1
15	φ10.3×57	500	2,4,6,8,10,12,16,20,25,32	10.3	57	图1
16	φ14.3×38	500	2,4,6,8,10,12,16,20,25,32,40,50,63	14.3	38	图1
17	φ14.3×45	500	2,4,6,8,10,12,16,20,25,32,40,50,63	14.3	45	图1
18	φ14.3×67	500	2,4,6,8,10,12,16,20,25,32,40,50	14.3	67	图1
19	φ15×50	500	20,25,32,40,50	15	50	图1
20	φ16.7×35	380	16,20,25,32,40,50,63	16.7	35	图1
21	φ18×37	500	2,4,6,8,10,12,16,20,25,32,40,50,63	18	37	图1
22	φ18×50	500	2,4,6,8,10,12,16,20,25,32,40,50,63	18	50	图1
23	φ20.5×40	600	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	40	图1
24	φ20.5×76	250/600	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	76	图1
25	φ20.5×114	250/600	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	114	图1
26	φ20.5×127	250/600	0.5,1,2,4,6,8,10,12,16,20,25,32	20.5	127	图1
27	φ21×58	600	2,4,6,8,10,12,16,20,25,32	21	58	图1
28	φ27×60	600	32,40,50,63,80	27	60	图1
29	φ27×139	250/600	32,40,50,63	27	139	图1
30	φ27×147	250/600	32,40,50,63	27	147	图1
31	φ10.3×38T	380/500	2,4,6,8,10,12,16,20,25,32	10.3	38	图2
32	φ14.3×51H	500	2,4,6,8,10,12,16,20,25,32,40,50,63	14.3	51	图3
33	φ20.5×76H	250/600	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	76	图3
34	φ20.5×114H	250/600	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	114	图3
35	φ20.5×127H	250/600	0.5,1,2,4,6,8,10,12,16,20,25,32	20.5	127	图3
36	φ22.2×58H	380/600	16,20,25,32,40,50,63,80,100,125	22.2	58	图3
37	φ27×139H	250/600	32,40,50,63	27	139	图3
38	φ27×147H	250/600	32,40,50,63	27	147	图3
