Product name：

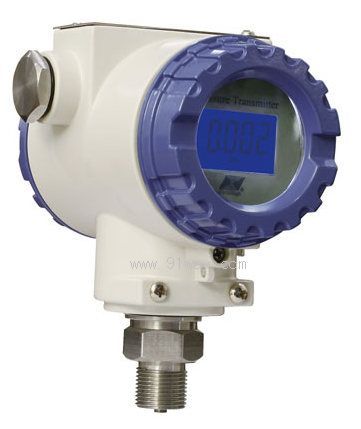

AL-KO-P series protective pressure transmitter

specification：

Zoom in on the image

Category：

instrumentation and meters -- Pressure transmitter

Price：

factory price

Brand：

Shanghai

Place of Origin：

China

Available Quantity：

batch

delivery cycle：

Spot goods (or inquire by telephone)

Shanghai Beiyuan Industry and Trade Co.,Ltd
+86-21-66770508
+86-13901609058

91way@163.com
13901609058(Wechat)

AL-KO-P series protective pressure transmitterDetailed product description：

Application of AL-KO-P series protective pressure transmitter

Process pressure control in industrial sites
Aerospace field
Petrochemical industry
Instrument, medical, food and other industries
Navigation and shipbuilding industry
Industries such as water conservancy, hydropower, and power plants

Characteristics of AL-KO-P series protective pressure transmitter

Laser resistance temperature compensation, using a wide temperature range
Imported diffused silicon or ceramic chips, suitable for measurement in different pressure situations
Strong ability to resist overload, impact, and interference
Excellent corrosion resistance, capable of measuring various media
Overvoltage and overcurrent protection circuit
High protection level
Surge voltage protection, reverse polarity protection
Can bring various on-site displays

Technical parameters of AL-KO-P series protective pressure transmitter

range	Any range within 0MPa to 100MPa, with a minimum range of 5kPa (diffusion silicon pressure sensor) Any range within 0MPa to 10MPa, with a minimum range of 160kPa (ceramic pressure sensor)
Accurately determine the level	0.2 level (full range within 70kPa~5MPa) 0.5 level (full range within 5kPa~70kPa) 0.5 level (full range within 5MPa~35MPa) 0.5 level 1 level (ceramic pressure sensor)
load capacity	Current output type ≤ 500 Ω; Voltage output type ≥ 3 Ω
medium temperature	－30℃～85℃
Ambient temperature	－ 20℃～+85℃
power supply voltage	DC 24V(12V～32V)
Nonlinear	± 0.2％F.S
Delay and repeatability	± 0.1％F.S
long-term stability	± 0.1％F.S/y
Thermal zero drift	± 0.02％F.S/℃
response time	≤ 50ms
Maximum work pressure	2 times the range
electrical connection	terminal block
process connection	M20 × 1.5 external thread/DN25 flange connection/other
External component materials	Ordinary stainless steel/316 stainless steel
Shell material	Aluminum alloy housing
Protection level	IP 65

AL-KO-P series protective pressure transmitter（schematic diagram）
