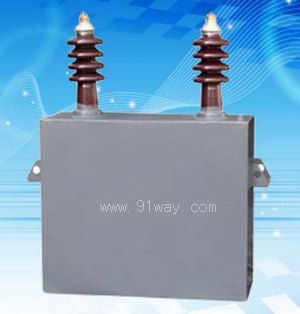

CH83 type medical lithotripter specialized capacitorDetailed product description：

CH83 type medical stone crusher special capacitor

Features and Applications:
This product uses high-quality metalized materials as the medium and is produced by special processes. It has the characteristics of fast charging and discharging, long service life (more than 3 million charging and discharging times), and no inductance, and is suitable for medical stone crushers.

Technical and performance indicators of CH83 medical stone crusher dedicated capacitor:

1. Environmental temperature: -40 ℃~85 ℃
2. Voltage endurance: The two terminals can withstand 1.1 times the rated voltage for 1 minute without flashover or breakdown.
The lead out terminal and the casing can withstand 1.5 times the voltage for 1 minute without arcing or breakdown.
3. Capacitor deviation: ± 5%, ± 10%
4. Loss tangent: ≤ 0.003
5. Insulation resistance: Under normal climatic conditions:
6. The distance between the two output terminals is 2000M Ω * UF
7. The distance between the lead out end and the casing is 500M Ω
8. Rated voltage: 10KV~100KV
