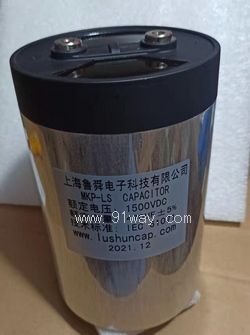

MKP-DC-LINK High Voltage DC Filter CapacitorDetailed product description：

MKP-DC-LINK high-voltage DC filter capacitors are made of imported metalized thin film with non inductive winding, special gold spraying process, aluminum shell or flame-retardant plastic shell packaging, flame-retardant epoxy resin potting, and copper bolts, copper sheets or copper nuts for lead out.

Features:
High stability * High ripple current * High peak current * Good self-healing * High voltage resistance * Small size

MKP-DC-LINK High Voltage DC Filter Capacitor Usage:
Mainly used for filtering or energy storage capacitors in UPS, frequency converters, electroplating power supplies, inverter welding machines, inverter power supplies, induction heating equipment, large switch power supplies, and other power electronic equipment.

Technical parameters of MKP-DC-LINK high-voltage DC filter capacitor

Rated voltage Un: 700VDC~2400VDC
Capacity range Cn: 75uF~6000uF
Capacity deviation:+/-5% (J); +/-10%（K）
Working temperature: -25 ° C~+70 ° C; -40 ° C~+85 ° C
Voltage resistance between lead out electrodes: 1.5 * Un, 10s,+25 ° C
Voltage resistance between the lead out electrode and the casing: 3000VAC, 50Hz, 2s
