产品名称: | 108型机械密封 | |||||
型号规格: | |
|||||
产品类别: | 常规产品 -- 泵阀管件 -- 机械密封件 | |||||
参考价格: | 厂价直销 | |||||
产品品牌: | 国产 | |||||
产品产地: | 上海 | |||||
可供数量: | 批量 | |||||
供货周期: | 现货(或电询) | |||||
|
||||||
产品简介: |
|

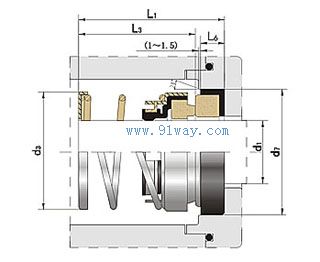

规格\尺寸 |
d1 (h6) |
d3 |
d7 (H8) |
L1 (±0.5) |
L3 |
L6 |
108-9 | 8 | 17.0 | 15 | 20.0 | 14.7 | 4.5 |
108-9 | 9 | 21.0 | 21 | 20.0 | 14.7 | 4.5 |
108-10 | 10 | 21.0 | 21 | 20.0 | 14.7 | 4.5 |
108-11 | 11 | 23.0 | 23 | 20.0 | 14.7 | 4.5 |
108-12 | 12 | 23.0 | 23 | 20.0 | 14.7 | 4.5 |
108-14 | 14 | 25.5 | 25 | 25.0 | 19.7 | 4.5 |
108-15 | 15 | 27.5 | 27 | 25.0 | 19.7 | 4.5 |
108-16 | 16 | 27.5 | 27 | 25.0 | 19.7 | 4.5 |
108-17 | 17 | 32.5 | 33 | 25.0 | 19.7 | 4.5 |
108-18 | 18 | 32.5 | 33 | 25.0 | 19.7 | 4.5 |
108-19 | 19 | 33.0 | 35 | 25.0 | 19.2 | 5.0 |
108-20 | 20 | 33.0 | 35 | 25.0 | 19.2 | 5.0 |
108-22 | 22 | 38.0 | 37 | 28.0 | 21.8 | 5.5 |
108-25 | 25 | 40.0 | 40 | 32.5 | 25.0 | 6.0 |
108-28 | 28 | 43.0 | 43 | 35.0 | 27.0 | 7.0 |
108-30 | 30 | 45.5 | 45 | 35.0 | 27.0 | 7.0 |
108-35 | 35 | 51.0 | 50 | 37.0 | 29.0 | 7.0 |
108-40 | 40 | 57.5 | 58 | 40.0 | 30.5 | 8.0 |
108-45 | 45 | 63.0 | 63 | 40.0 | 30.5 | 8.0 |
108-50 | 50 | 71.0 | 70 | 45.0 | 33.5 | 9.5 |
108-55 | 55 | 75.5 | 75 | 45.0 | 33.5 | 9.5 |
