产品名称： | 560B型机械密封 | ||||
| 型号规格： |   放大图片 |
|||||
| 产品类别： | 常规产品 -- 泵阀管件 -- 机械密封件 | |||||
| |
参考价格： | 厂价直销 | ||||
| 产品品牌： | 国产 | |||||
| 产品产地： | 上海 | |||||
| |
可供数量： | 批量 | ||||
| 供货周期： | 现货(或电询) | |||||
 |
|
|||||
| |
产品简介： |
|
||||
|

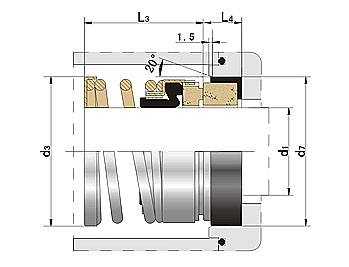

规格/尺寸 |
d1 (-0.002) |
d3 |
d7 (+0.002) |
L3 (±0.02) |
L4 |
| 560B-0.250" | 0.250 | 0.708 | 0.750 | 0.562 | 0.250 |
| 560B-0.375" | 0.375 | 0.807 | 0.875 | 0.812 | 0.284 |
| 560B-0.437" | 0.437 | 0.885 | 1.000 | 0.812 | 0.312 |
| 560B-0.500" | 0.500 | 0.885 | 1.000 | 0.812 | 0.312 |
| 560B-0.562" | 0.562 | 0.965 | 1.250 | 0.875 | 0.406 |
| 560B-0.625" | 0.625 | 1.043 | 1.250 | 0.875 | 0.406 |
| 560B-0.750" | 0.750 | 1.338 | 1.375 | 0.875 | 0.406 |
| 560B-0.875" | 0.875 | 1.417 | 1.500 | 0.937 | 0.406 |
| 560B-1.000" | 1.000 | 1.575 | 1.625 | 1.000 | 0.437 |
| 560B-1.125" | 1.125 | 1.661 | 1.750 | 1.062 | 0.437 |
| 560B-1.250" | 1.250 | 1.850 | 1.875 | 1.062 | 0.437 |
| 560B-1.375" | 1.375 | 1.968 | 2.000 | 1.125 | 0.437 |
| 560B-1.437" | 1.437 | 2.165 | 2.125 | 1.125 | 0.437 |
| 560B-1.500" | 1.500 | 2.165 | 2.125 | 1.125 | 0.437 |
| 560B-1.625" | 1.625 | 2.244 | 2.375 | 1.375 | 0.500 |
| 560B-1.750" | 1.750 | 2.421 | 2.500 | 1.375 | 0.500 |
| 560B-1.875" | 1.875 | 2.559 | 2.625 | 1.500 | 0.500 |
| 560B-2.000" | 2.000 | 2.657 | 2.750 | 1.500 | 0.500 |
| 560B-2.125" | 2.125 | 2.835 | 3.000 | 1.687 | 0.562 |
| 560B-2.250" | 2.250 | 3.090 | 3.125 | 1.687 | 0.562 |
| 560B-2.375" | 2.375 | 3.150 | 3.250 | 1.812 | 0.562 |
| 560B-2.437" | 2.437 | 3.150 | 3.250 | 1.812 | 0.562 |
| 560B-2.500" | 2.500 | 3.268 | 3.375 | 1.812 | 0.562 |
| 560B-2.625" | 2.625 | 3.543 | 3.375 | 1.937 | 0.625 |
| 560B-2.750" | 2.750 | 3.635 | 3.500 | 1.937 | 0.625 |
| 560B-2.875" | 2.875 | 3.704 | 3.750 | 2.062 | 0.625 |
| 560B-3.000" | 3.000 | 3.898 | 3.875 | 2.062 | 0.625 |
| 560B装配尺寸(mm) | |||||
|
规格/尺寸 |
d1 (H6) |
d3 |
d7 (H8) |
L3 (±0.5) |
L4 |
| 560B-10 | 10 | 20.5 | 25.4 | 19.0 | 7.9 |
| 560B-12 | 12 | 22.5 | 25.4 | 19.0 | 7.9 |
| 560B-14 | 14 | 24.5 | 31.75 | 22.5 | 10.3 |
| 560B-16 | 16 | 26.5 | 31.75 | 22.5 | 10.3 |
| 560B-18 | 18 | 30.5 | 34.92 | 22.5 | 10.3 |
| 560B-20 | 20 | 34.0 | 38.1 | 24.0 | 10.3 |
| 560B-22 | 22 | 36.5 | 38.1 | 24.0 | 10.3 |
| 560B-24 | 24 | 40.0 | 41.27 | 25.4 | 11.1 |
| 560B-25 | 25 | 40.0 | 41.27 | 25.4 | 11.1 |
| 560B-28 | 28 | 42.0 | 44.45 | 27.0 | 11.1 |
| 560B-30 | 30 | 45.0 | 47.62 | 27.0 | 11.1 |
| 560B-32 | 32 | 47.0 | 47.62 | 27.0 | 11.1 |
| 560B-33 | 33 | 47.0 | 50.8 | 28.5 | 11.1 |
| 560B-35 | 35 | 50.0 | 50.8 | 28.5 | 11.1 |
| 560B-38 | 38 | 55.0 | 53.98 | 28.5 | 11.1 |
| 560B-40 | 40 | 57.0 | 60.32 | 35.0 | 12.7 |
| 560B-43 | 43 | 59.0 | 63.5 | 35.0 | 12.7 |
| 560B-45 | 45 | 61.5 | 66.68 | 38.0 | 12.7 |
| 560B-48 | 48 | 65.0 | 69.85 | 38.0 | 12.7 |
| 560B-50 | 50 | 67.5 | 69.85 | 38.0 | 12.7 |
| 560B-53 | 53 | 70.5 | 76.2 | 43.0 | 14.3 |
| 560B-55 | 55 | 72.0 | 79.38 | 43.0 | 14.3 |
| 560B-58 | 58 | 78.5 | 82.55 | 46.0 | 14.3 |
| 560B-60 | 60 | 80.0 | 82.55 | 46.0 | 14.3 |
| 560B-65 | 65 | 84.5 | 85.72 | 49.0 | 15.9 |
| 560B-70 | 70 | 90.0 | 95.25 | 49.0 | 15.9 |
