LGB0912工字型电感器电气特性参数

料号

电感量 uH

测试频率

直流电阻Ω

额定电流 mA

LGB0912 - 1R0M

1.0

1KHz/0.3V

0.015

5000

LGB0912 - 1R5M

1.5

1KHz/0.3V

0.015

5000

LGB0912 - 1R8M

1.8

1KHz/0.3V

0.015

5000

LGB0912 - 2R2M

2.2

1KHz/0.3V

0.015

5000

LGB0912 - 3R3M

3.3

1KHz/0.3V

0.020

5000

LGB0912 - 3R9M

3.9

1KHz/0.3V

0.020

4800

LGB0912 - 4R7M

4.7

1KHz/0.3V

0.020

4500

LGB0912 - 5R6M

5.6

1KHz/0.3V

0.025

4000

LGB0912 - 6R8M

6.8

1KHz/0.3V

0.025

3900

LGB0912 - 8R2M

8.2

1KHz/0.3V

0.025

3500

LGB0912 – 100K

10

1KHz/0.3V

0.030

3400

LGB0912 – 120K

12

1KHz/0.3V

0.030

3200

LGB0912 – 150K

15

1KHz/0.3V

0.040

3000

LGB0912 – 180K

18

1KHz/0.3V

0.045

2800

LGB0912 – 220K

22

1KHz/0.3V

0.050

2700

LGB0912 – 270K

27

1KHz/0.3V

0.055

2500

LGB0912 – 330K

33

1KHz/0.3V

0.055

2500

LGB0912 – 390K

39

1KHz/0.3V

0.06

2000

LGB0912 – 470K

47

1KHz/0.3V

0.07

1800

LGB0912 – 560K

56

1KHz/0.3V

0.08

1700

LGB0912 – 680K

68

1KHz/0.3V

0.09

1500

LGB0912 – 820K

82

1KHz/0.3V

0.11

1400

LGB0912 – 101K

100

1KHz/0.3V

0.16

1200

LGB0912 – 121K

120

1KHz/0.3V

0.170

1100

LGB0912 – 151K

150

1KHz/0.3V

0.20

1000

LGB0912 – 181K

180

1KHz/0.3V

0.22

900

LGB0912 – 221K

220

1KHz/0.3V

0.26

800

LGB0912 – 271K

270

1KHz/0.3V

0.39

700

LGB0912 – 331K

330

1KHz/0.3V

0.45

500

LGB0912 – 391K

390

1KHz/0.3V

0.49

450

LGB0912 – 471K

470

1KHz/0.3V

0.62

430

LGB0912 - 561MK

560

1KHz/0.3V

0.64

400

LGB0912 – 681K

680

1KHz/0.3V

0.79

380

LGB0912 – 821K

820

1KHz/0.3V

1.34

350

LGB0912 – 102K

1000

1KHz/0.3V

1.82

300

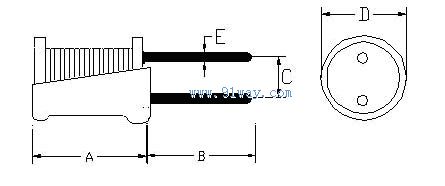

P/N

料号

A

(MAX)

B

(MIN)

C

(MAX)

D

(MAX)

E

(MAX)

0406

8.0

10.0

2.0±0.5

5.0

0.5±0.1

0608

10.0

10.0

3.0±0.5

7.0

0.6±0.1

0810

12.5

10.0

5.0±0.5

9.0

0.6±0.1

0912

15.0

10.0

5.0±0.5

11.0

0.6±0.1

1012

15.0

10.0

7.0±1.0

12.0

0.8±0.1

1016

19.0

10.0

7.0±1.0

12.0

0.8±0.1

1415

18.0

10.0

8.0±1.0

16.0

0.8±0.1
