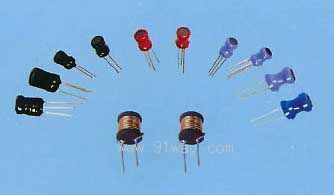

产品名称: | LGB1016工字型电感器 | |||||
型号规格: | |
|||||
产品类别: | 常规产品 -- 电子电器 -- 电感器 | |||||
参考价格: | 厂价直销 | |||||
产品品牌: | 国产 | |||||
产品产地: | 上海 | |||||
可供数量: | 批量 | |||||
供货周期: | 现货(或电询) | |||||
|
||||||
产品简介: |
|
LGB1016工字型电感器电气特性参数 | ||||
料号 |
电感量 uH |
测试频率 |
直流电阻Ω |
额定电流 mA |
LGB1016 - 3R3M |
3.3 |
1KHz/0.3V |
0.015 |
8500 |
LGB1016 - 6R8M |
6.8 |
1KHz/0.3V |
0.025 |
7500 |
LGB1016 – 100K |
10 |
1KHz/0.3V |
0.030 |
7200 |
LGB1016 – 120K |
12 |
1KHz/0.3V |
0.030 |
7000 |
LGB1016 – 150K |
15 |
1KHz/0.3V |
0.035 |
6500 |
LGB1016 – 180K |
18 |
1KHz/0.3V |
0.035 |
6300 |
LGB1016 – 220K |
22 |
1KHz/0.3V |
0.045 |
5500 |
LGB1016 – 270K |
27 |
1KHz/0.3V |
0.050 |
4500 |
LGB1016 – 330K |
33 |
1KHz/0.3V |
0.070 |
4000 |
LGB1016 – 390K |
39 |
1KHz/0.3V |
0.070 |
3800 |
LGB1016 – 470K |
47 |
1KHz/0.3V |
0.070 |
3600 |
LGB1016 – 560K |
56 |
1KHz/0.3V |
0.080 |
3200 |
LGB1016 – 680K |
68 |
1KHz/0.3V |
0.090 |
3000 |
LGB1016 – 820K |
82 |
1KHz/0.3V |
0.095 |
2600 |
LGB1016 – 101K |
100 |
1KHz/0.3V |
0.12 |
2500 |
LGB1016 – 121K |
120 |
1KHz/0.3V |
0.14 |
2300 |
LGB1016 – 151K |
150 |
1KHz/0.3V |
0.17 |
2100 |
LGB1016 – 181K |
180 |
1KHz/0.3V |
0.19 |
2000 |
LGB1016 – 221K |
220 |
1KHz/0.3V |
0.25 |
1800 |
LGB1016 – 271K |
270 |
1KHz/0.3V |
0.34 |
1500 |
LGB1016 – 331K |
330 |
1KHz/0.3V |
0.45 |
1500 |
LGB1016 – 391K |
390 |
1KHz/0.3V |
0.51 |
1300 |
LGB1016 – 471K |
470 |
1KHz/0.3V |
0.56 |
1200 |
LGB1016 – 561K |
560 |
1KHz/0.3V |
0.64 |
1000 |
LGB1016 – 681K |
680 |
1KHz/0.3V |
0.71 |
1000 |
LGB1016 – 821K |
820 |
1KHz/0.3V |
1.01 |
900 |
LGB1016 –102K |
1000 |
1KHz/0.3V |
1.20 |
800 |
LGB1016 –122K |
1200 |
1KHz/0.3V |
1.5 |
620 |
LGB1016 –152K |
1500 |
1KHz/0.3V |
1.7 |
550 |
LGB1016 –182K |
1800 |
1KHz/0.3V |
1.8 |
490 |
LGB1016 –222K |
2200 |
1KHz/0.3V |
2.4 |
385 |
LGB1016 –272K |
2700 |
1KHz/0.3V |
2.8 |
385 |
LGB1016 –332K |
3300 |
1KHz/0.3V |
3.7 |
300 |
LGB1016 –392K |
3900 |
1KHz/0.3V |
5.0 |
250 |
LGB1016 –472K |
4700 |
1KHz/0.3V |
5.6 |
250 |
LGB1016 –562K |
5600 |
1KHz/0.3V |
6.3 |
250 |
LGB1016 –682K |
6800 |
1KHz/0.3V |
8.4 |
190 |
LGB1016 –822K |
8200 |
1KHz/0.3V |
9.6 |
190 |
LGB1016 –103K |
10000 |
1KHz/0.3V |
10.5 |
190 |
LGB1016 –123K |
12000 |
1KHz/0.3V |
14.05 |
150 |
LGB1016 –153K |
15000 |
1KHz/0.3V |
20.5 |
120 |
LGB1016 –183K |
18000 |
1KHz/0.3V |
27.5 |
95 |
LGB1016 –223K |
22000 |
1KHz/0.3V |
31.0 |
95 |
LGB1016 –253K |
25000 |
1KHz/0.3V |
32.5 |
95 |
LGB1016 –303K |
30000 |
1KHz/0.3V |
35.5 |
95 |
LGB1016 –333K |
33000 |
1KHz/0.3V |
40.0 |
95 |
LGB1016 –393K |
39000 |
1KHz/0.3V |
51.0 |
95 |
LGB1016 –473K |
47000 |
1KHz/0.3V |
56.0 |
95 |

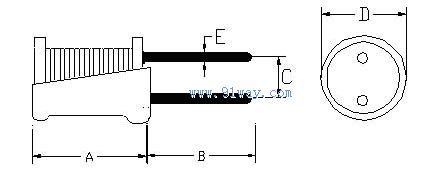

P/N 料号 |
A (MAX) |
B (MIN) |
C (MAX) |
D (MAX) |
E (MAX) |
0406 |
8.0 |
10.0 |
2.0±0.5 |
5.0 |
0.5±0.1 |
0608 |
10.0 |
10.0 |
3.0±0.5 |
7.0 |
0.6±0.1 |
0810 |
12.5 |
10.0 |
5.0±0.5 |
9.0 |
0.6±0.1 |
0912 |
15.0 |
10.0 |
5.0±0.5 |
11.0 |
0.6±0.1 |
1012 |
15.0 |
10.0 |
7.0±1.0 |
12.0 |
0.8±0.1 |
1016 |
19.0 |
10.0 |
7.0±1.0 |
12.0 |
0.8±0.1 |
1415 |
18.0 |
10.0 |
8.0±1.0 |
16.0 |
0.8±0.1 |
