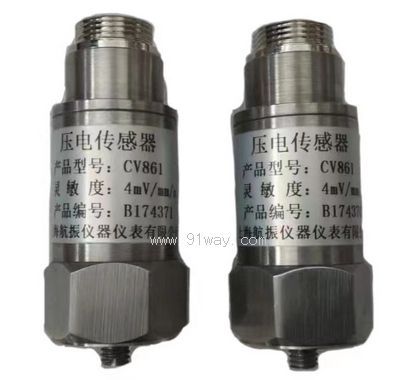

CV861 Acceleration sensorDetailed product description：

Introduction to CV861 accelerometer: It has small size, good sealing performance, and long service life. Due to the use of a dual coil structure, it can superimpose effective signals and attenuate interference signals, effectively improving anti-interference ability.
Introduction to CV861 accelerometer sensor, used together with vibration monitor, can achieve continuous and long-term monitoring, suitable for measuring mechanical vibrations such as steam turbines, fans, water pumps, coal mills, etc.

Technical Specifications:
1. Sensitivity: 20m/mm/s+5%, 30mv/mm/s+5%, 45mv/mm/s+5%, 50mv/mm/s+5% (optional) 2. Frequency response: 5-300Hz
10-1000Hz (optional)
3 Error: 10-300HZ<2%
300-1000HZ<4% 4 Natural frequency: 10Hz
5 measurable amplitudes: ≤ 2mm (P-P)
It is fixed on a bracket by two coils, with a magnetic steel in the middle connected to the shell
Magnetoelectric (vibration velocity) sensors are mainly installed on bearing covers of various rotating machinery, such as turbines, compressors, fans, and pumps. It is an electromagnetic sensor that outputs voltage by cutting magnetic field lines with a moving coil
Therefore, it has the characteristics of not requiring power supply during operation and easy installation.
2. Technical parameters
2.1 Sensitivity: 20mv/mm/s
2.2 Frequency response: 5-1000 Hz
10-1000Hz (optional)
2.3 Error: 10-300HZ<2%
300- 1000HZ<4%
2.4 Natural frequency: 10Hz
2.5 Measurable amplitude:<2mm (P-P)
2.6 High acceleration: 10g
2.7 Measurement direction: dual-purpose vertical and horizontal
2.8 Operating environment: Temperature -40 ℃~70 ℃, relative humidity<90%
2.9 Dimensions: Medium 31x70mm
2.10 Weight: Approximately 300g
