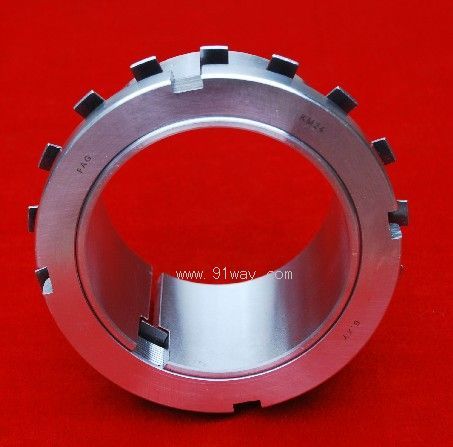

产品名称: | KM(AN)系列普通锁紧螺母 | |||||
型号规格: | |
|||||
产品类别: | 常规产品 -- 五金工具 -- 紧固件 | |||||
参考价格: | 厂价直销 | |||||
产品品牌: | 国产 | |||||
产品产地: | 上海 | |||||
可供数量: | 批量 | |||||
供货周期: | 现货(或电询) | |||||
|
||||||
产品简介: |
|
型号
|
外 型 尺 寸mm
|
质量(kg) | ||||
D |
d2 |
B |
b |
h | ||
km00 km01 km02 |
M10×0.75 M12×1 M15×1 |
18 22 25 |
4 4 5 |
3 3 4 |
2 2 2 |
0.005 0.007 0.010 |
km03 km04 km05 |
M17×1 M20×1 M25×1.5 |
28 32 38 |
5 6 7 |
4 4 5 |
2 2 2 |
0.013 0.019 0.025 |
km06 km07 km08 |
M30×1.5 M35×1.5 M40×1.5 |
45 52 58 |
7 8 9 |
5 5 6 |
2 2 2.5 |
0.043 0.053 0.085 |
km09 km10 km11 |
M45×1.5 M50×1.5 M55×2 |
65 70 75 |
10 11 11 |
6 6 7 |
2.5 2.5 3 |
0.119 0.148 0.158 |
km12 km13 km14 |
M60×2 M65×2 M70×2 |
80 85 92 |
11 12 12 |
7 7 8 |
3 3 3.5 |
0.174 0.203 0.242 |
km15 km16 km17 |
M75×2 M80×2 M85×2 |
98 105 110 |
13 15 16 |
8 8 8 |
3.5 3.5 3.5 |
0.287 0.397 0.451 |
km18 km19 km20 |
M90×2 M95×2 M100×2 |
120 125 130 |
16 17 18 |
10 10 10 |
4 4 4 |
0.556 0.658 0.698 |
km21 km22 km23 |
M105×2 M110×2 M115×2 |
140 145 150 |
18 19 19 |
12 12 12 |
5 5 5 |
0.845 0.965 1.01 |
km24 km25 km26 |
M120×2 M125×2 M130×2 |
155 160 165 |
20 21 21 |
12 12 12 |
5 5 5 |
1.08 1.19 1.25 |
km27 km28 km29 |
M135×2 M140×2 M145×2 |
175 180 190 |
22 22 24 |
14 14 14 |
6 6 6 |
1.55 1.56 2.00 |
km30 km31 km32 |
M150×2 M155×3 M160×3 |
195 200 210 |
24 25 25 |
14 16 16 |
6 7 7 |
2.03 2.21 2.59 |
km33 km34 |
M165×3 M170×3 |
210 220 |
26 26 |
16
16 |
7 7 |
2.43 2.80 |
km36 km38 km40 |
M180×3 M190×3 M200×3 |
230 240 250 |
27 28 29 |
18 18 18 |
8 8 8 |
3.07 3.39 3.69 |
Km44
km48
km52 |
T220×4
T240×4
T260×4 |
280
300
330 |
32
34
36 |
20
20
24 |
10
10
12 |
5.20
5.95
8.0 |
Km56
Km60 km64 |
T280×4
T300×4
T320×5 |
350
380
400 |
38
40
42 |
24
24
24 |
12
12
12 |
9.05
11.8
13.1 |
Km68 km72 km76 |
T340×5
T360×5
T380×5 |
440
460
490 |
55
58
60 |
28
28
32 |
15
15
18 |
23.1
25.1
30.9 |
Km80 km84 km88 |
T400×5
T420×5
T440×5 |
520
540
560 |
62
70
70 |
32
32
36 |
18
18
20 |
36.9
43.5
45.3 |
Km92 km96 km100 |
T460×5
T480×5
T500×5 |
580
620
630 |
75
75
80 |
36
36
40 |
20
20
23 |
50.4
62.2
63.3 |
現行代號 | 原用代號 | NTN | SKF | AKF | NTN | NACHI | KOYO | 規格(DXd1Xd2XbXhXB) |
KM03 | AN03 | KM03 | KM03 | AN03 | AN03 | AN03 | 17×24×28×4×2×5 | |
KM04 | AN04 | KM04 | KM04 | AN04 | AN04 | AN04 | 20×26×32×4×2×6 | |
KM05 | AN05 | KM05 | KM05 | AN05 | AN05 | AN05 | 25×32×38×5×2×7 | |
KM06 | AN06 | KM06 | KM06 | AN06 | AN06 | AN06 | 30×38×45×5×2×7 | |
KM07 | AN07 | KM07 | KM07 | AN07 | AN07 | AN07 | 35×44×52×5×2×8 | |
KM08 | AN08 | KM08 | KM08 | AN08 | AN08 | AN08 | 40×50×58×6×2.5×9 | |
KM09 | AN09 | KM09 | KM09 | AN09 | AN09 | AN09 | 45×56×65×6×2.5×10 | |
KM10 | AN10 | KM10 | KM10 | AN10 | AN10 | AN10 | 50×61×70×6×2.5×11 | |
KM11 | AN11 | KM11 | KM11 | AN11 | AN11 | AN11 | 55×67×75×7×3×11 | |
KM12 | AN12 | KM12 | KM12 | AN12 | AN12 | AN12 | 60×73×80×7×3×11 | |
KM13 | AN13 | KM13 | KM13 | AN13 | AN13 | AN13 | 65×79×85×7×3×12 | |
KM14 | AN14 | KM14 | KM14 | AN14 | AN14 | AN14 | 70×85×92×8×3.5×12 | |
KM15 | AN15 | KM15 | KM15 | AN15 | AN15 | AN15 | 75×90×98×8×3.5×13 | |
KM16 | AN16 | KM16 | AN16 | AN16 | AN16 | 80×95×105×8×3.5×15 | ||
KM17 | AN17 | KM17 | AN17 | AN17 | AN17 | 85×102×110×8×3.5×16 | ||
KM18 | AN18 | KM18 | AN18 | AN18 | AN18 | 90×108×120×10×4×16 | ||
KM19 | AN19 | KM19 | AN19 | AN19 | AN19 | 95×113×125×10×4×17 | ||
KM20 | AN20 | KM20 | AN20 | AN20 | AN20 | 100×120×130×10×4×18 | ||
KM21 | AN21 | KM21 | AN21 | AN21 | AN21 | 105×126×140×12×5×18 | ||
KM22 | AN22 | KM22 | AN22 | AN22 | AN22 | 110×133×145×12×5×19 |
KM(AN)系列普通锁紧螺母
