NR系列径向精密锁紧螺母

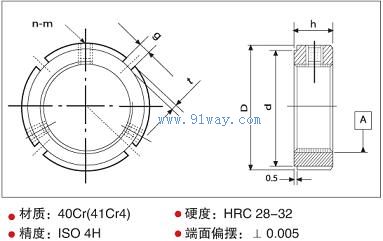

材质: 42CrMo4 调质 硬度:HRC28 °~32° 螺纹精度:ISO 4H精密车削 平面偏摆:0.005mm
锁定方式为径向三点式锁定,其厚度相较其他产品为薄,适用于螺帽厚度空间受到限制,无法使用其它产品之情况。
产品规格 |
螺纹和螺距 |
D |
h |
g |
t |
d |
n-m |
MAX.Nm |
轴向负载(KN) |
NR 6-0.5 |
M6x0.5 |
16 |
8 |
3 |
2 |
11 |
2-M4 |
3.5 |
30 |
NR 8-0.75 |
M8x0..75 |
16 |
8 |
3 |
2 |
11 |
2-M4 |
3.5 |
30 |
NR 10-0.75 |
M10x0.75 |
18 |
8 |
3 |
2 |
13 |
2-M4 |
3.5 |
35 |
NR 10-1 |
M10x1.0 |
18 |
8 |
3 |
2 |
13 |
2-M4 |
3.5 |
35 |
NR 12-1 |
M12x1.0 |
20 |
8 |
3 |
2 |
16 |
2-M4 |
3.5 |
40 |
NR 12-1.25 |
M12x1.25 |
20 |
8 |
3 |
2 |
16 |
2-M4 |
3.5 |
40 |
NR 14-1.5 |
M14x1.5 |
25 |
8 |
3 |
2 |
21 |
2-M4 |
3.5 |
60 |
NR 15-1 |
M15x1.0 |
25 |
8 |
3 |
2 |
21 |
2-M4 |
3.5 |
60 |
NR 16-1 |
M16x1.5 |
28 |
10 |
4 |
2 |
23 |
2-M5 |
4.5 |
60 |
NR 17-1 |
M17x1.0 |
28 |
10 |
4 |
2 |
23 |
2-M5 |
4.5 |
80 |
NR 18-1.5 |
M18x1.5 |
30 |
10 |
4 |
2 |
25 |
2-M5 |
4.5 |
80 |
NR 20-1 |
M20x1.0 |
32 |
10 |
4 |
2 |
27 |
3-M5 |
5.5 |
90 |
NR 20-1.5 |
M20x1.5 |
32 |
10 |
4 |
2 |
27 |
3-M5 |
6.5 |
90 |
NR 22-1.5 |
M22x1.5 |
35 |
10 |
4 |
2 |
30 |
3-M5 |
7.5 |
130 |
NR 24-1.5 |
M24x1.5 |
38 |
12 |
5 |
2 |
33 |
3-M6 |
8 |
130 |
NR 25-1.5 |
M25x1.5 |
38 |
12 |
5 |
2 |
33 |
3-M6 |
8 |
130 |
NR 27-1.5 |
M27x1.5 |
42 |
12 |
5 |
2 |
37 |
3-M6 |
8 |
140 |
NR 30-1 |
M30x1.0 |
45 |
12 |
5 |
2 |
40 |
3-M6 |
8 |
160 |
NR 30-1.5 |
M30x1.5 |
45 |
12 |
5 |
2 |
40 |
3-M6 |
8 |
160 |
NR 33-1.5 |
M33x1.5 |
52 |
12 |
5 |
2 |
45 |
3-M6 |
8 |
170 |
NR 35-1.5 |
M35x1.5 |
52 |
12 |
5 |
2 |
47 |
3-M6 |
8 |
190 |
NR 36-1.5 |
M36x1.5 |
55 |
14 |
6 |
2.5 |
49 |
3-M6 |
8 |
190 |
NR 39-1.5 |
M39x1.5 |
58 |
14 |
6 |
2.5 |
52 |
3-M6 |
8 |
210 |
NR 40-1.5 |
M40x1.5 |
58 |
14 |
6 |
2.5 |
52 |
3-M6 |
8 |
210 |
NR 42-1.5 |
M42x1.5 |
62 |
14 |
6 |
2.5 |
56 |
3-M6 |
8 |
220 |
NR 45-1.5 |
M45x1.5 |
65 |
14 |
6 |
2.5 |
59 |
3-M6 |
8 |
240 |
NR 48-1.5 |
M48x1.5 |
68 |
14 |
6 |
2.5 |
62 |
3-M6 |
8 |
300 |
NR 50-1.5 |
M50x1.5 |
70 |
14 |
6 |
2.5 |
64 |
3-M6 |
8 |
300 |
NR 52-1.5 |
M52x1.5 |
73 |
16 |
7 |
3 |
66 |
3-M8 |
18 |
320 |
NR 55-1.5 |
M55x1.5 |
75 |
16 |
7 |
3 |
68 |
3-M8 |
18 |
340 |
NR 56-2 |
M56x2 |
77 |
16 |
7 |
3 |
70 |
3-M8 |
18 |
340 |
NR 60-1.5 |
M60x1.5 |
80 |
16 |
7 |
3 |
73 |
3-M8 |
18 |
380 |
NR 60-2 |
M60x2 |
80 |
16 |
7 |
3 |
73 |
3-M8 |
18 |
380 |
NR 64-2 |
M64x2 |
85 |
16 |
7 |
3 |
78 |
3-M8 |
18 |
460 |
NR 65-2 |
M65x2 |
85 |
16 |
7 |
3 |
78 |
3-M8 |
18 |
460 |
NR 68-2 |
M68x2 |
92 |
18 |
8 |
3.5 |
84 |
3-M8 |
18 |
490 |
NR 70-2 |
M70x2 |
92 |
18 |
8 |
3.5 |
84 |
3-M8 |
18 |
490 |
NR 72-2 |
M72x2 |
95 |
18 |
8 |
3.5 |
86 |
3-M8 |
18 |
500 |
NR 75-2 |
M75x2 |
98 |
18 |
8 |
3.5 |
90 |
3-M8 |
18 |
520 |
NR 76-2 |
M76x2 |
100 |
18 |
8 |
3.5 |
92 |
3-M8 |
18 |
520 |
NR 80-2 |
M80x2 |
105 |
18 |
8 |
3.5 |
96 |
3-M8 |
18 |
620 |
NR 85-2 |
M85x2 |
110 |
18 |
8 |
3.5 |
102 |
3-M8 |
18 |
650 |
NR 90-2 |
M90x2 |
120 |
20 |
10 |
4 |
106 |
3-M8 |
18 |
680 |
NR 95-2 |
M95x2 |
125 |
20 |
10 |
4 |
112 |
3-M8 |
18 |
710 |
NR 100-2 |
M100x2 |
130 |
20 |
10 |
4 |
117 |
3-M8 |
18 |
740 |
NR 105-2 |
M105x2 |
140 |
22 |
12 |
5 |
124 |
3-M8 |
18 |
770 |
NR 110-2 |
M110x2 |
145 |
22 |
12 |
5 |
130 |
3-M8 |
18 |
800 |
NR 115-2 |
M115x2 |
150 |
22 |
12 |
5 |
135 |
3-M8 |
18 |
830 |
NR 120-2 |
M120x2 |
155 |
24 |
12 |
5 |
140 |
3-M8 |
18 |
860 |
NR 125-2 |
M125x2 |
160 |
24 |
12 |
5 |
145 |
3-M8 |
18 |
890 |
NR 130-2 |
M130x2 |
165 |
24 |
12 |
5 |
150 |
3-M8 |
18 |
920 |
NR 135-2 |
M135x2 |
175 |
26 |
14 |
6 |
158 |
3-M10 |
35 |
950 |
NR 140-2 |
M140x2 |
180 |
26 |
14 |
6 |
160 |
3-M10 |
35 |
980 |
NR 145-2 |
M145x2 |
190 |
26 |
14 |
6 |
170 |
3-M10 |
35 |
1010 |
NR 150-2 |
M150x2 |
195 |
26 |
14 |
6 |
180 |
3-M10 |
35 |
1040 |
NR 155-2 |
M155x3 |
200 |
28 |
16 |
7 |
178 |
3-M10 |
35 |
1070 |
NR 158-2 |
M158x2 |
200 |
28 |
16 |
7 |
178 |
3-M10 |
35 |
1070 |
NR 158-3 |
M158x3 |
200 |
28 |
16 |
7 |
178 |
3-m10 |
35 |
1070 |
NR 160-3 |
M160x3 |
210 |
28 |
16 |
7 |
188 |
3-M10 |
35 |
1100 |
NR 165-3 |
M165x3 |
210 |
28 |
16 |
7 |
188 |
3-M10 |
35 |
1130 |
NR 170-3 |
M170x3 |
220 |
28 |
16 |
7 |
198 |
3-M10 |
35 |
1160 |
NR 180-3 |
M180x3 |
230 |
30 |
18 |
8 |
202 |
3-M12 |
60 |
1300 |
NR 190-3 |
M190x3 |
240 |
30 |
18 |
8 |
212 |
3-M12 |
60 |
1470 |
NR 200-3 |
M200x3 |
250 |
32 |
18 |
8 |
223 |
3-M12 |
60 |
1600 |
NR 220-3 |
M220x3 |
270 |
34 |
18 |
8 |
245 |
3-M12 |
60 |
|
NR 220-4 |
M220x4 |
270 |
34 |
18 |
8 |
245 |
3-M12 |
60 |
|
NR 240-3 |
M240x3 |
290 |
34 |
18 |
8 |
265 |
3-M12 |
60 |
|
NR 260-3 |
M260x3 |
310 |
36 |
18 |
8 |
285 |
3-M12 |
60 |
|
NR 260-4 |
M260x4 |
310 |
36 |
18 |
8 |
285 |
3-M12 |
60 |
|
NR 280-4 |
M280x4 |
330 |
36 |
18 |
8 |
305 |
3-M12 |
60 |
|
NR 300-4 |
M300x4 |
350 |
36 |
18 |
8 |
325 |
3-M12 |
60 |
