Product name：

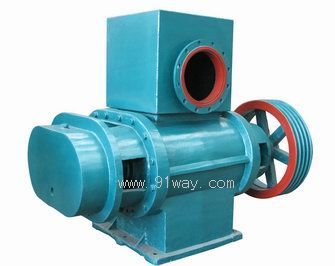

ZBK series two blade Roots vacuum pump

specification：

Zoom in on the image

Category：

Pump valve fittings -- vacuum pump

Price：

factory price

Brand：

Shanghai

Place of Origin：

China

Available Quantity：

batch

delivery cycle：

Spot goods (or inquire by telephone)

Shanghai Beiyuan Industry and Trade Co.,Ltd
+86-21-66770508
+86-13916950330

91way@163.com
13916950330(Wechat)

ZBK series two blade Roots vacuum pumpDetailed product description：

The ZBK series two leaf Roots vacuum pump is a vacuum equipment used for obtaining rough vacuum. Compared with water ring vacuum pumps, it has the characteristics of high efficiency, small size, and obvious light weight. Its electricity consumption is only about 50% of that of water ring vacuum pumps. Therefore, it has been widely used for vacuum dehydration in industries such as paper, food, chemical, clothing, sugar, and suction in the cigarette industry. The suction medium can be dry, humid air or a mixture of gas and water, but the medium cannot contain granular solid substances.

Technical parameters of ZBK series two blade Roots vacuum pump

Basic Parameters		Roots vacuum pump model
name	unit	ZBK13	ZBK15A	ZBK16	ZBK17
Maximum draw count	m3/min	six	ten	fifteen	thirty
revolution	r/min	four hundred	four hundred and fifty	four hundred	four hundred
Use vacuum degree	Pa	53.3 × 103 (equivalent to below 400mmHg)
ultimate vacuum	Pa	90.66 × 103 (equivalent to 680mmHg or above)
Import and export diameter	mm	one hundred and twenty-five	one hundred and fifty	two hundred	two hundred and fifty
Motor for use		Y160M-6 705KW	Y160L-4 15KW	Y200L2-6 22KW	Y280S-6 45KW
Weight	kg	four hundred and fifty	eight hundred and ninety	nine hundred	two thousand and one hundred
Dimensions (length, width, height)	mm	894×580×832	1014×580×902	1040×755×1077	1480×875×1300

ZBK series two blade Roots vacuum pump（schematic diagram）
