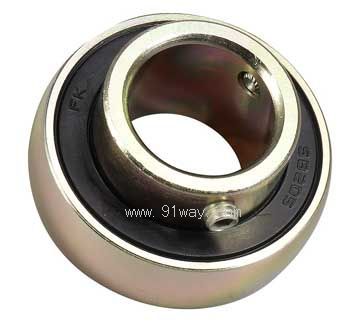

产品名称: | SB2系列外球面球轴承 | |||||
型号规格: | |
|||||
产品类别: | 常规产品 -- 机械传动 -- 外球面球轴承 | |||||
参考价格: | 厂价直销 | |||||
产品品牌: | 国产 | |||||
产品产地: | 上海 | |||||
可供数量: | 批量 | |||||
供货周期: | 现货(或电询) | |||||
|
||||||
产品简介: |
|

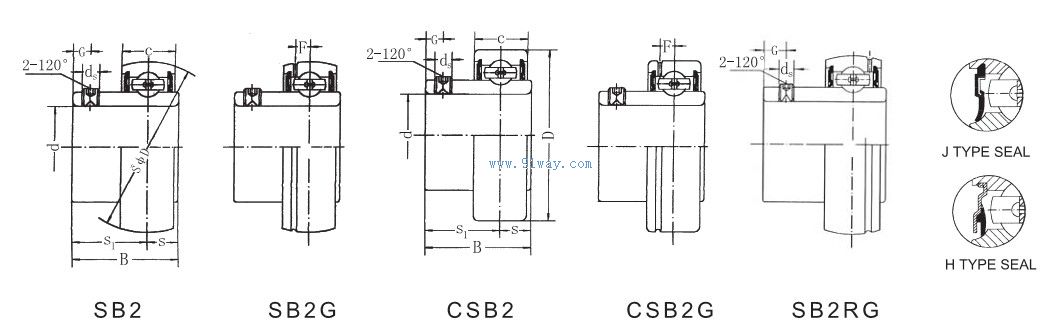

Bearing No. | Dimensions mm in. | Dynamic load ratings N |
Static load ratings N |
Weight(kg) | ||||||||
d | D | B | C | S | S1 | ds | G | |||||
SB201 | 12 | 40 | 22 | 12 | 6 | 16 | M5×0.8 | 4.5 | 9600 | 4600 | 0.1 | |
SB201-8 | 1/2 | 1.57 | 0.87 | 0.47 | 0.24 | 0.63 | 10#-32 | 0.18 | 9600 | 4600 | 0.1 | |
SB202 | 15 | 40 | 22 | 12 | 6 | 16 | M5 x 0.8 | 4.5 | 9600 | 4600 | 0.1 | |
SB202-9 | 9/16 | 1.57 | 0.87 | 0.47 | 0.24 | 0.63 | 10#-32 | 0.18 | 9600 | 4600 | 0.1 | |
SB202-10 | 5/8 | 1.57 | 0.87 | 0.47 | 0.24 | 0.63 | 10#-32 | 0.18 | 9600 | 4600 | 0.1 | |
SB203 | 17 | 40 | 22 | 12 | 6 | 16 | M5 X 0.8 | 4.5 | 9600 | 4600 | 0.09 | |
SB203-11 | 11/16 | 1.57 | 0,8661 | 0.47 | 0.24 | 0.63 | 10#-32 | 0.18 | 9600 | 4600 | 0.09 | |
SB204 | 20 | 47 | 25 | 14 | 7 | 18 | M6x1 | 4.5 | 12800 | 6650 | 0.13 | |
SB204-12 | 3/4 | 1.85 | 0.98 | 0.55 | 276 | 0.71 | 1/4-28UNF | 0.18 | 12800 | 6650 | 0 14 | |
SB205 | 25 | 52 | 27 | 15 | 7.5 | 19.5 | M6x1 | 5.5 | 14000 | 7850 | 0.16 | |
SB205-13 | 13/16 | 2.05 | 1 .0630 | 0.59 | 0.29 | 0.77 | 1/4-28UNF | 0.217 | 14000 | 7850 | 0.19 | |
SB205-14 | 7/8 | 2.05 | 1 .0630 | 0.59 | 0.29 | 0.77 | 1/4-28UNF | 0.22 | 14000 | 7850 | 0.18 | |
SB205-15 | 15/16 | 2.05 | 1 .0630 | 0.59 | 0.29 | 0.77 | 1/4-28UNF | 0.22 | 14000 | 7850 | 0.17 | |
SB205-16 | 1 | 2.05 | 1 .0630 | 0.59 | 0.29 | 0.77 | 1/4-28UNF | 0.22 | 14000 | 7850 | 0.16 | |
SB206 | 30 | 62 | 30 | 16 | 8 | 22 | M6x1 | 6 | 19500 | 11300 | 0.25 | |
SB206-17 | 1-1/16 | 2.44 | 1.18 | 0.63 | 0.32 | 0.87 | 1/4-28UNF | 0.24 | 19500 | 11300 | 0 28 | |
SB206-18 | 1-1/8 | 2.44 | 1.18 | 0.63 | 0.32 | 0.87 | 1/4-28UNF | 0.24 | 19500 | 11300 | 0.26 | |
SB206-19 | 1-3/16 | 2.44 | 1.18 | 0.63 | 0.32 | 0.87 | 1/4-28UNF | 0.24 | 19500 | 11300 | 0.25 | |
SB206-20 | 1-1/4 | 2.44 | 1.18 | 0.63 | 0.32 | 0.87 | 1/4-28UNF | 0.24 | 19500 | 11300 | 0.24 | |
SB207 | 35 | 72 | 32 | 17 | 8.5 | 23.5 | M8×1 | 6.5 | 25700 | 15300 | 0.38 |
Bearing No. | Dimensions mm in. | Dynamic load ratings N |
Static load ratings N |
Weight(kg) | ||||||||
d | D | B | C | S | S1 | ds | G | |||||
SB207-20 | 1-1/4 | 2.83 | 1.26 | 0.67 | 0.34 | 0.93 | 5/16-24UNF | 0.26 | 25700 | 15300 | 0.43 | |
SB207-21 | 1-5/16 | 2.83 | 1.26 | 0.67 | 0.34 | 0.93 | 5/16-24UNF | 0.26 | 25700 | 15300 | 0.41 | |
SB207-22 | 1-3/8 | 2.83 | 1.26 | 0.67 | 0.34 | 0.93 | 5/16-24UNF | 0.26 | 25700 | 15300 | 0.38 | |
SB207-23 | 1-7/16 | 2.83 | 1.26 | 0.67 | 0.34 | 0.93 | 5/16-24UNF | 0.26 | 25700 | 15300 | 0.37 | |
SB208 | 40 | 80 | 34 | 18 | 9 | 25 | M8x 1 | 7 | 29500 | 18100 | 0.6 | |
SB208-24 | 1-1/2 | 3.15 | 1.34 | 0.71 | 0.35 | 0.98 | 5/16-24UNF | 0.28 | 29500 | 18100 | 0 58 | |
SB208-25 | 1-9/16 | 3.15 | 1.34 | 0.71 | 0.35 | 0.98 | 5/16-24UNF | 0.28 | 29500 | 18100 | 0.6 | |
SB209 | 45 | 85 | 41.2 | 19 | 10.2 | 31 | M8x1 | 8.2 | 31600 | 20600 | 0.8 | |
5B209-26 | 1-5/8 | 3.35 | 1.62 | 0.75 | 0.4 | 1.22 | 5/16-24UNF | 0.32 | 31600 | 20600 | 0.8 | |
SB209-27 | 1-11/16 | 3.35 | 1.62 | 0.75 | 0.4 | 1.22 | 5/16-24UNF | 0.32 | 31600 | 20600 | 0.8 | |
SB209.28 | 1-3/4 | 3.35 | 1.62 | 0.75 | 0.4 | 1.22 | 5/16-24UNF | 0.32 | 31600 | 20600 | 0.8 | |
SB210 | 50 | 90 | 43.5 | 20 | 10.9 | 32.6 | M10x1 | 9.2 | 35000 | 23200 | 0.8 | |
SB210-29 | 1-13/16 | 3.54 | 1.71 | 0.79 | 0.43 | 1.28 | 3/8-24UNF | 0.36 | 35000 | 23200 | 0.8 | |
SB210-30 | 1-7/8 | 3.54 | 1.71 | 0.79 | 0.43 | 1.28 | 3/8-24UNF | 0.36 | 35000 | 23200 | 0.8 | |
SB210.31 | 1-15/16 | 3.54 | 1.71 | 0.79 | 0.43 | 1.28 | 3/8-24UNF | 0.36 | 35000 | 23200 | 0.8 | |
SB210-32 | 2 | 3.54 | 1.71 | 0.79 | 0.43 | 1.28 | 3/8-24UNF | 0.36 | 35000 | 23200 | 0.8 | |
SB211 | 55 | 100 | 45.3 | 21 | 11.8 | 33.5 | M10x 1 | 9.8 | 43500 | 29200 | 1.1 | |
SB211-32 | 2 | 3.94 | 1.78 | 0.83 | 0.47 | 1.32 | 3/8-24UNF | 0.39 | 43500 | 29200 | 1.1 | |
SB211-33 | 2-1/16 | 3.94 | 1.78 | 0.83 | 0.47 | 1.32 | 3/8-24UNF | 0.39 | 43500 | 29200 | 1.1 | |
SB211-34 | 2-1/8 | 3.94 | 1.78 | 0.83 | 0.47 | 1.32 | 3/8-24UNF | 0.39 | 43500 | 29200 | 1.1 |
Bearing No. | Dimensions mm in. | Dynamic load ratings N |
Static load ratings N |
Weight(kg) | ||||||||
d | D | B | C | S | S1 | ds | G | |||||
SB211-35 | 2-3/16 | 3.94 | 1.78 | 0.83 | 0.47 | 1.32 | 3/8-24UNF | 0.39 | 43500 | 29200 | 1.1 | |
SB212 | 60 | 110 | 53.7 | 22 | 14.9 | 38.8 | M10x1 | 9.8 | 47700 | 32900 | 1.3 | |
SB212-36 | 2-1/4 | 4.33 | 2.11 | 0.87 | 0.59 | 1.53 | 3/8 -24UNF | 0.39 | 47700 | 32900 | 1.3 | |
SB212-37 | 2-5/16 | 4.33 | 2.11 | 0.87 | 0.59 | 1.53 | 3/8 -24UNF | 0.39 | 47700 | 32900 | 1.3 | |
SB212-38 | 2-3/8 | 4.33 | 2.11 | 0.87 | 0.59 | 1.53 | 3/8 -24UNF | 0.39 | 47700 | 32900 | 1.3 | |
SB212-39 | 2-7/16 | 4.33 | 2.11 | 0.87 | 0.59 | 1.53 | 3/8 -24UNF | 0.39 | 47700 | 32900 | 1.3 |
